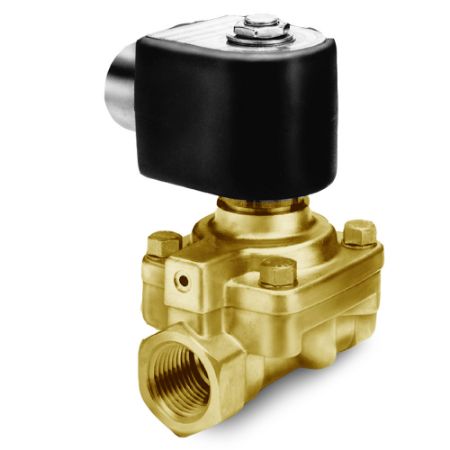

Parker 2-Way Normally Closed, 2" NPT General Purpose Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

Parker’s 2-Way Normally Closed 2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in brass construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation

Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff

Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Flow Coefficient 2	Orifice 2 Size	Function	Product Series	Power Consumption	Seal Material	Division	Coil Type	Minimum Fluid Temperature	Valve Type	Body Material	Input Voltage	Minimum Pressure Differential	Number of Ports	Media	Coil Specifications Met	Port Size	Maximum Fluid Temperature	Maximum Pressure Differential	Port Type	Actuation Type	Orifice 1 Size	Flow Coefficient 1	Coil Type	Voltage (V)	Maximum Pressure Differential (psi)	Power (Watts)
7321GBN99N00N0C111C2	Quote Required	Quote Required	$980.50/each	EA	n/a	n/a	Normally Closed (NC)	7000 Series	10 W (DC)	NBR	Fluid Control Division	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	0 °F	2-Way	Brass	24.0 VDC	5 psi	2	Liquids and Gases	NEMA 4X	2 inch	185 °F	200 psi (DC)	NPT	Pilot	1-9/16 inch	38.6 Cv	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24 VDC	200 psi (DC)	10 Watt (DC)
7321GBN99N00N0C222P3	Quote Required	Quote Required	TBD	EA	n/a	n/a	Normally Closed (NC)	7000 Series	10 W (AC)	NBR	Fluid Control Division	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	0	2-Way	Brass	110/50-120/60	5	2	General Purpose for Air	NEMA 4X	2	185	230 psi (AC)	NPT	Pilot	1-9/16	38.6	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	110/50-120/60	230 psi (AC)	10 Watt (AC)
7321GBN99N00N0D100P3	2 Limited Stock	Quote Required	$971.52/each	EA	n/a	n/a	Normally Closed (NC)	7000 Series	10 W (AC)	NBR	Fluid Control Division	DIN Form A, Class F	0 °F	2-Way	Brass	110/50-120/60	5 psi	2	Liquids and Gases	NEMA 4X	2 inch	185 °F	230 psi (AC)	NPT	Pilot	1-9/16 inch	38.6 Cv	DIN Form A, Class F	110/50-120/60	230 psi (AC)	10 Watt (AC)
7321GBN99N00N0H111C2	Quote Required	Quote Required	$1,055.84/each	EA	n/a	n/a	Normally Closed (NC)	7000 Series	10 W (DC)	NBR	Fluid Control Division	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	0 °F	2-Way	Brass	24.0 VDC	5 psi	2	Liquids and Gases	NEMA 9	2 inch	185 °F	200 psi (DC)	NPT	Pilot	1-9/16 inch	38.6 Cv	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	24 VDC	200 psi (DC)	10 Watt (DC)
7321GBN99N00N0H322C2	Quote Required	Quote Required	TBD	EA	n/a	n/a	Normally Closed (NC)	7000 Series	22 W (DC)	NBR	Fluid Control Division	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	0	2-Way	Brass	24.0	5	2	General Purpose for Air	NEMA 7	2	185	230 psi (DC)	NPT	Pilot	1-9/16	38.6	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	24 VDC	230 psi (DC)	22 Watt (DC)
