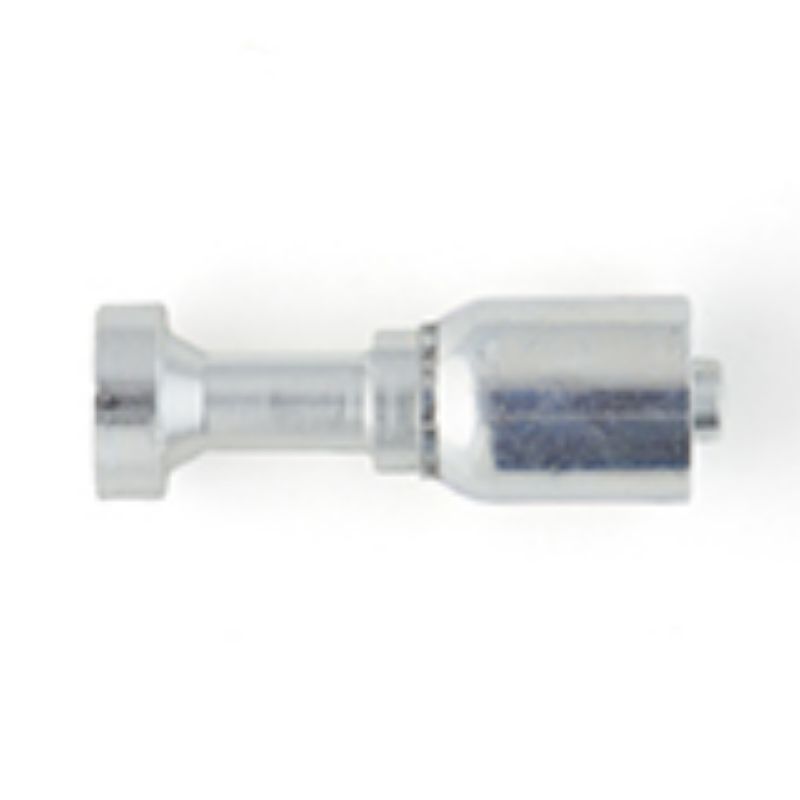

Parker 1XA77-12-16 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1XA77-12-16

$96.84/each

Products specifications

Attribute name	Attribute value
UOM	EA	Banjo Port Diameter	n/a
Flange Size	3/4 inch	Port Size	3/4 inch
Shape	Straight	Product Style	Caterpillar® Flange Head
Nut Hex Size	n/a	Hose Inside Diameter	1 inch
Connection Size	n/a	Materials of Construction	Steel
Back-Up Hex Size	n/a	Division	Hose Products Division
Shape	Straight	Materials of Construction	Steel
Hose I.D. (inch)	1"	Port Connection	3/4"
Material	Steel	Product Style	Caterpillar® Flange Head
Style	Caterpillar Flange Head
