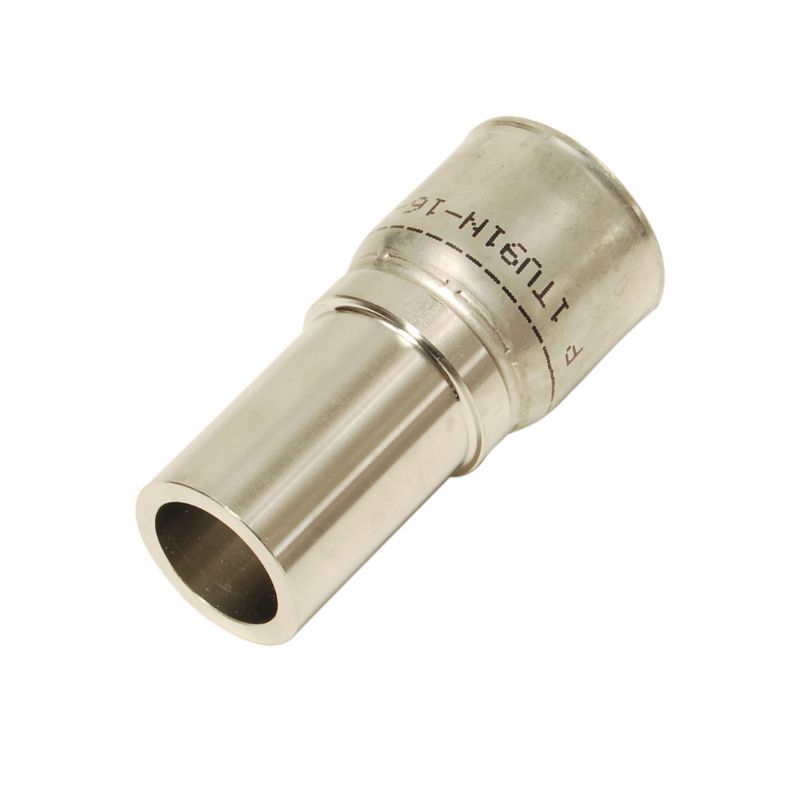

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 1TU91N-12-12C - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. 1TU91N-12-12C

$191.38/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	15.9 mm
Hex Size	n/a	Coating	n/a
Connection Length	37 mm	Body Material	n/a
Connection 2 Type	Tube Stub End	Application	Chemical Transfer
Division	Parflex Division	Shape	Stub End
Product Type	Hose Fittings	Hex Size 1	n/a
Tube Outside Diameter	19.1 mm	Connection 1 Type	Hose
Specifications Met	n/a	Maximum Operating Pressure	207 bar
Industry	Healthcare & Life Sciences	Product Series	91N
Brand	Parker	Connection 2 Size	3/4 inch Thread
Configuration	Hose to Port	Fitting Length	57 mm
Dimensional Weight	0.054 lb	For Fluid Type	Pharmaceutical Fluids
Division	Parflex Division	Technology	Fluid & Gas Handling
Hose I.D. (inch)	5/8"	Connection 2 Size	3/4"
Length (inch)	2.24"	Product Style	Universal Tube Stub
