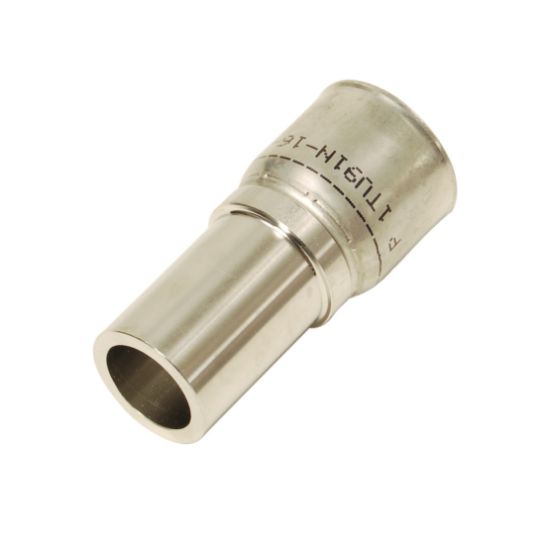

Parker 1TU91N-10-10C - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1TU91N-10-10C

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Parflex Division
Industry	Transportation	Technology	Fluid & Gas Handling
Connection 2 Type	Male	Application	Semiconductor
Specifications Met	N/A	Division	Parflex Division
Hex Size	n/a	Hex Size 1	n/a
Product Type	Hose Fittings	Configuration	Hose to Port
Connection 1 Size	-10 (Size)	Connection 1 Type	Hose
Maximum Operating Pressure	3000 psi (Dependent on hose)	Product Series	91N
Coating	n/a	Body Material	n/a
For Fluid Type	Pharmaceutical Fluids	Fitting Length	2.14 inch (see drawing legend A)
Connection Length	1-7/16 inch Cut-off allowance (see drawing legend B)	Connection 2 Size	5/8 inch Thread
Shape	Stub End	Tube Outside Diameter	5/8
Hose I.D. (inch)	1/2"	Length (inch)	2.14"
Connection 2 Size	5/8"	Product Style	Universal Tube Stub
