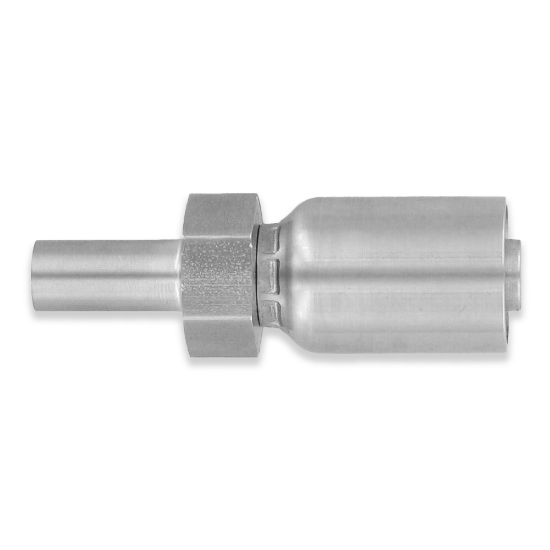

Parker 1TU56-4-4C - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. 1TU56-4-4C

$130.22/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	5000 psi (Dependent on hose)
Industry	Off-road Machinery	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
Brand	Parker	Connection 2 Size	0.25 inch Diameter (see drawing legend R)
Configuration	Hose to Port	Fitting Length	2.35 inch (see drawing legend A)
Dimensional Weight	0.0223 lb	For Fluid Type	Water
Division	Parflex Division	Technology	Fluid & Gas Handling
Connection 1 Size	1/4 inch Hose I.D.	Body Material	Stainless Steel
Hex Size	11/16 inch (see drawing legend J)	Connection 2 Type	Stub End
Connection Length	35 mm Cut-off allowance	Application	Agriculture Equipment
Shape	Straight Universal Inch	Division	Parflex Division
Shipping Weight	0.088 lb	Hex Size 2	n/a
Hex Size 1	n/a	Tube Outside Diameter	n/a
Connection 1 Type	Hose	Hose I.D. (inch)	0.25"
Materials of Construction	Stainless Steel	Length (inch)	2.35"
Product Style	Universal Tube Stub
