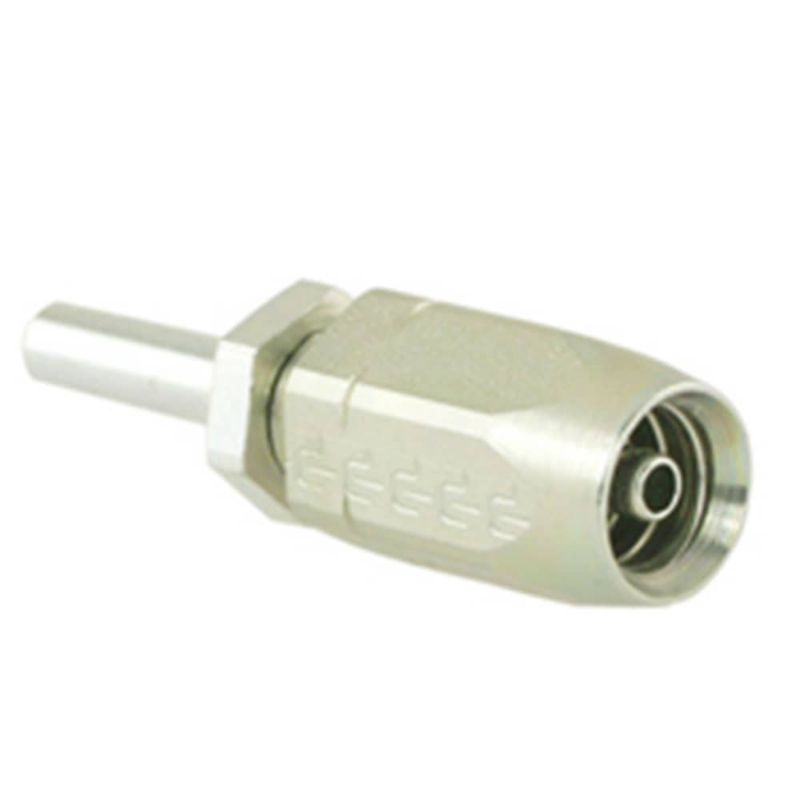

Parker 1TU56-4-4 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. 1TU56-4-4

$68.96/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coating	Chromium 6 Free-plated
Connection 1 Size	6.35 mm Hose I.D.	Connection Length	35 mm Cut-off allowance
Body Material	Steel	Hex Size	11/16 inch (see drawing legend J)
Connection 2 Type	Stub End	Shape	Straight Universal Inch
Division	Parflex Division	Shipping Weight	0.04 kg
Hex Size 2	n/a	Hex Size 1	n/a
Application	Material Handling	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Brand	Parker
Industry	Off-road Machinery	Maximum Operating Pressure	5000 psi (Dependent on hose)
Dimensional Weight	0.0106 lb	Connection 2 Size	0.25 inch Diameter (see drawing legend R)
Configuration	Hose to Port	Fitting Length	2.35 inch (see drawing legend A)
For Fluid Type	Oil	Division	Parflex Division
Technology	Fluid & Gas Handling	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Length (inch)	2.35"
Product Style	Universal Tube Stub
