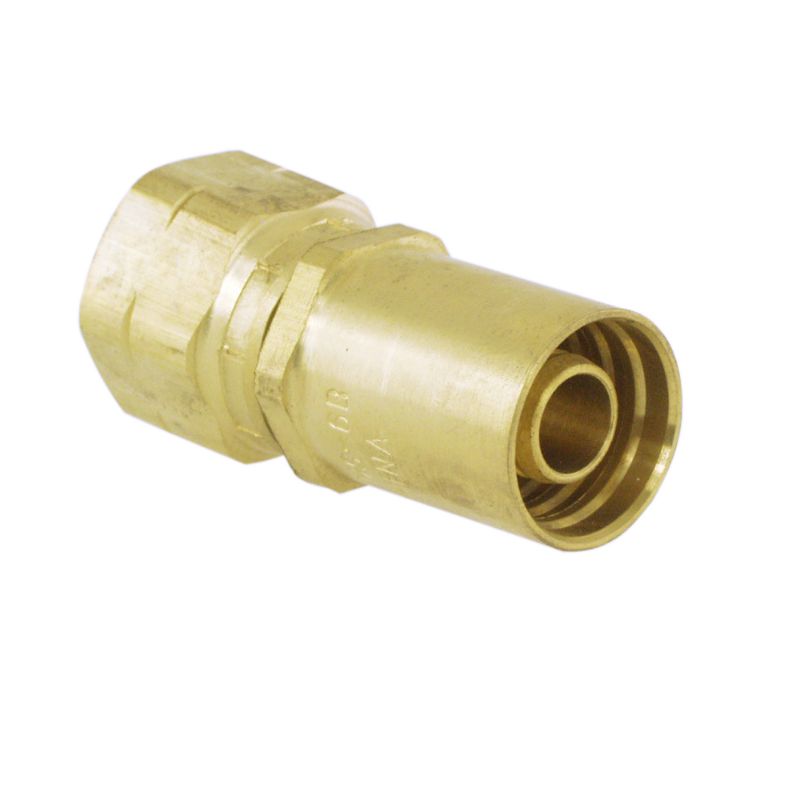

Parker 1TFMS-6-5B - Marine Hose Fittings – MS Series

Name: Parker 1TFMS-6-5B - Marine Hose Fittings – MS Series
SKU: 1TFMS-6-5B
Price: 20.31 USD
Availability: InStock

MS series are available in both permanent crimp and field attachable brass constructions for corrosion resistance in marine steering applications.

Availability:

213 In Stock

Summerville, SC	170
Norfolk, VA	31
Fayetteville, NC	8

Partner Available:

207 In Stock

Brand Parker

Part No. 1TFMS-6-5B

$20.31

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Body Material	Brass	Shape	Straight
Division	Parflex Division	Technology	Fluid & Gas Handling
Specifications Met	N/A	Division	Parflex Division
Product Type	Hose Fittings	Configuration	Hose to Port
Connection 1 Size	-5 (Size)	Connection 1 Type	Hose
For Fluid Type	Water	Coating	n/a
Fitting Length	43 mm (see drawing legend A)	Connection Length	1-1/16 inch Cut-off allowance
Hex Size	3/4 inch (see drawing legend J)	Industry	Marine
Maximum Operating Pressure	103 bar	Application	Marine
Hex Size 2	5/8 inch (see drawing legend H)	Connection 2 Size	9/16"-24 inch Thread
Connection 2 Type	Tube Connector	Shape	Straight
Body Material	BRASS	Connection 1 Hose Inside Diameter	5/16" (I.D.)
Connection 2 Size	9/16"-24	Connection 2 Type	Permanent Crimp, Marine Tube
