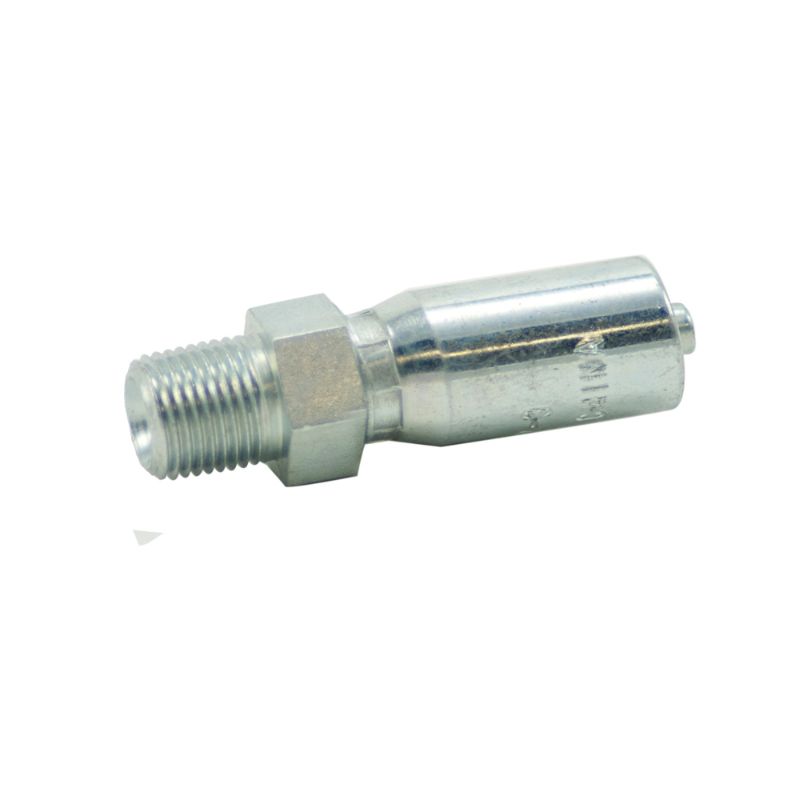

Parker 1LMCY-2-2 - Permanent Fittings for Parflex Hose – CY Series

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Availability:	Quote Required
Partner Available:	29 In Stock

Brand Parker

Part No. 1LMCY-2-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Division	Parflex Division
Technology	Fluid & Gas Handling	Connection 2 Type	Male
Specifications Met	N/A	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size 1	n/a
Product Type	Hose Fittings	Configuration	Hose to Port
For Fluid Type	Hydraulic Fluids	Connection 1 Type	Hose
Body Material	Steel	Industry	Off-road Machinery
Connection 1 Size	1/8 inch Hose I.D.	Maximum Operating Pressure	41.4 MPa
Application	Diagnostics	Connection Length	17 mm
Hex Size	0.375 inch (see drawing legend H)	Fitting Length	1.26 inch
Connection 2 Size	1/4"-28 inch Thread	Shape	Straight
Body Material	Steel	Hose I.D. (inch)	0.125"
Connection 2 Size	1/4"-28	Product Style	Male Grease
Length (inch)	1.26"
