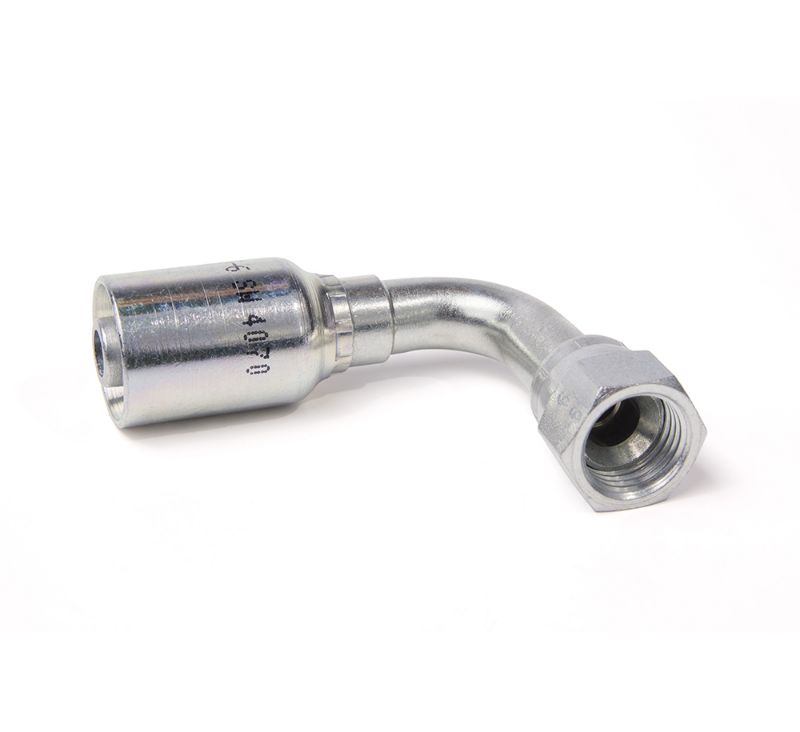

Parker 1L956-8-8 - Global Fittings - 56 Series - Inch

Name: Parker 1L956-8-8 - Global Fittings - 56 Series - Inch
SKU: 1L956-8-8
Price: 43.18 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:

3 In Stock

North Chesterfield, VA

Partner Available:

14 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1L956-8-8

$43.18/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Brand	Parker	Industry	Industrial Manufacturing Equipment
Fitting Length	2.57 inch (see drawing legend A)	Configuration	Hose to Port
Dimensional Weight	0.1222 lb	Connection 2 Size	3/4"-16 inch Thread
For Fluid Type	Air (Pneumatic Media)	Technology	Fluid & Gas Handling
Division	Parflex Division	Connection 1 Size	1/2 inch Hose I.D.
Coating	Chromium 6 Free-plated	Connection Length	1-7/16 inch Cut-off allowance
Body Material	Steel	Hex Size	n/a
Connection 2 Type	Female	Shape	Elbow 90° Medium Drop
Division	Parflex Division	Hex Size 2	n/a
Application	Construction Equipment	Shipping Weight	0.284 lb
Tube Outside Diameter	n/a	Hex Size 1	7/8 inch (see drawing legend J)
Connection 1 Type	Hose	Materials of Construction	Steel
Hose I.D. (inch)	0.5"	Connection 2 Size	3/4"-16
Length (inch)	2.48"	Product Style	Female JIC 37° - Swivel - 90° Elbow - Medium Drop
