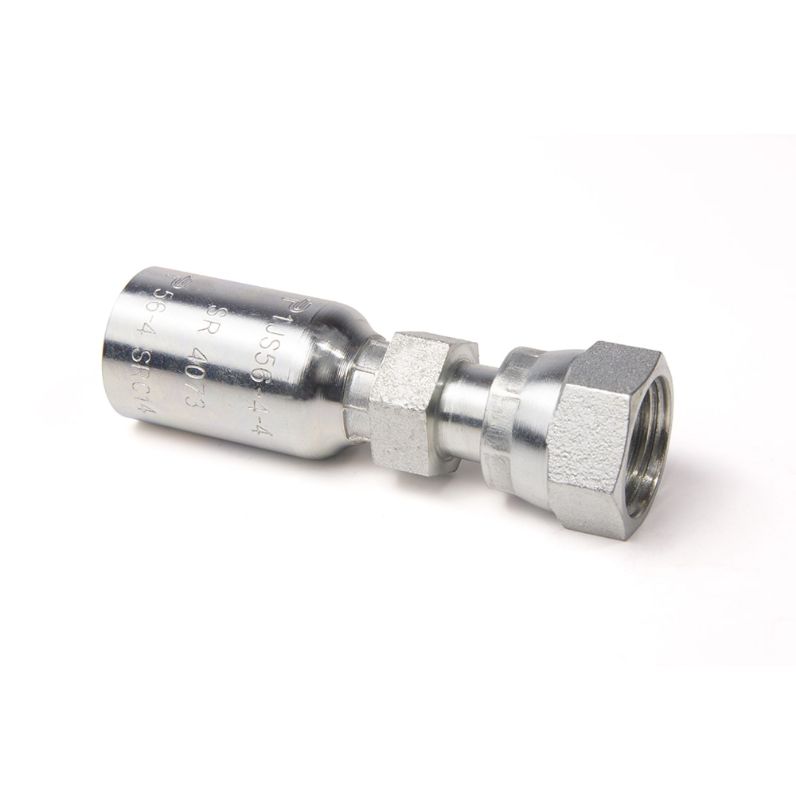

Parker 1JS56-4-4 - Global Fittings - 56 Series - Inch

Name: Parker 1JS56-4-4 - Global Fittings - 56 Series - Inch
SKU: 1JS56-4-4
Price: 20.02 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:

56 In Stock

North Chesterfield, VA	10
Fayetteville, NC	9
Summerville, SC	9
Richmond, VA	6 (Pickup only)
West Knoxville, TN	6
Norfolk, VA	4
Jacksonville, FL	4
Mooresville, NC	4
Ashland, VA	2 (Pickup only)
Johnson City, TN	2 (Pickup only)

Partner Available:

812 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1JS56-4-4

$20.02/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Size	9/16"-18 inch Thread
Fitting Length	2.17 inch (see drawing legend A)	Configuration	Hose to Port
Dimensional Weight	0.0202 lb	Division	Parflex Division
For Fluid Type	Air (Pneumatic Media)	Technology	Fluid & Gas Handling
Hex Size	7/16 inch (see drawing legend H)	Connection 1 Size	6.35 mm Hose I.D.
Body Material	Steel	Coating	Chromium 6 Free-plated
Connection 2 Type	Swivel	Connection Length	1-3/16 inch Cut-off allowance
Shape	Straight Long	Division	Parflex Division
Shipping Weight	0.115 lb	Hex Size 2	n/a
Hex Size 1	11/16 inch (see drawing legend J)	Application	Machine Tools
Tube Outside Diameter	n/a	Connection 1 Type	Hose
Maximum Operating Pressure	5000 psi (Dependent on hose)	Brand	Parker
Industry	Off-road Machinery	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Connection 2 Size	9/16"-18
Product Style	Female Seal-Lok - Swivel - Straight - Long	Length (inch)	2.17"
