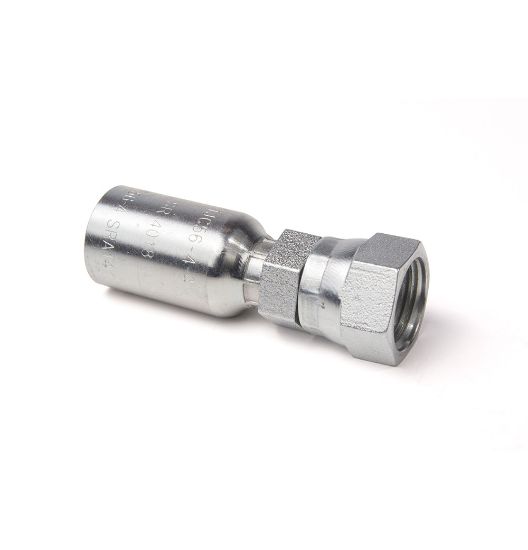

Parker 1JC56-6-5 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Quote Required
Partner Available:	104 In Stock

Brand Parker

Part No. 1JC56-6-5

$34.52

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Parflex Division	Technology	Fluid & Gas Handling
Coating	Chromium 6 Free-plated	Division	Parflex Division
Configuration	Hose to Port	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Body Material	Steel
Application	Material Handling	Industry	Off-road Machinery
For Fluid Type	Water	Maximum Operating Pressure	5000 psi (Dependent on hose)
Hex Size	11/16 inch (see drawing legend H)	Hex Size 2	n/a
Connection 2 Type	Swivel	Fitting Length	1.95 inch (see drawing legend A)
Connection 1 Size	7.9 mm Hose I.D.	Dimensional Weight	0.0267 lb
Shape	Straight Short	Connection 2 Size	11/16"-16 inch Thread
Hex Size 1	13/16 inch (see drawing legend J)	Shipping Weight	0.146 lb
Connection Length	15/16 inch Cut-off allowance	Materials of Construction	Steel
Product Style	Female Seal-Lok - Swivel - Straight - Short	Hose I.D. (inch)	0.313"
Length (inch)	1.95"	Connection 2 Size	11/16"-16
