*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

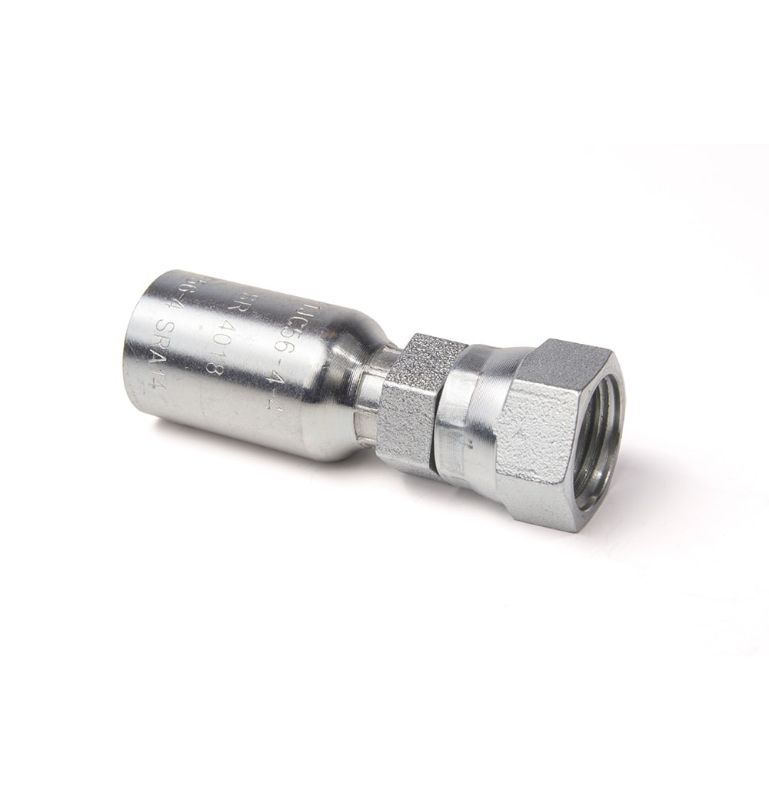

Parker 1JC56-10-8 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:	Quote Required
Partner Available:	97 In Stock

Brand Parker

Part No. 1JC56-10-8

$44.14/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size 1	1-1/8 inch (see drawing legend J)
Tube Outside Diameter	n/a	Connection 1 Type	Hose
Maximum Operating Pressure	5000 psi (Dependent on hose)	Brand	Parker
Industry	Transportation	Fitting Length	58 mm (see drawing legend A)
Division	Parflex Division	Connection 2 Size	1"-14 inch Thread
Configuration	Hose to Port	Dimensional Weight	0.1304 lb
For Fluid Type	Water	Technology	Fluid & Gas Handling
Connection 1 Size	12.7 mm Hose I.D.	Hex Size	15/16 inch (see drawing legend H)
Connection 2 Type	Seal-Lok®	Coating	Chromium 6 Free-plated
Connection Length	1-3/16 inch Cut-off allowance	Division	Parflex Division
Body Material	Steel	Hex Size 2	n/a
Shape	Straight Short	Shipping Weight	0.32 lb
Application	Utility Equipment	Materials of Construction	Steel
Product Style	Female Seal-Lok - Swivel - Straight - Short	Hose I.D. (inch)	0.5"
Connection 2 Size	1"-14	Length (inch)	2.3"
