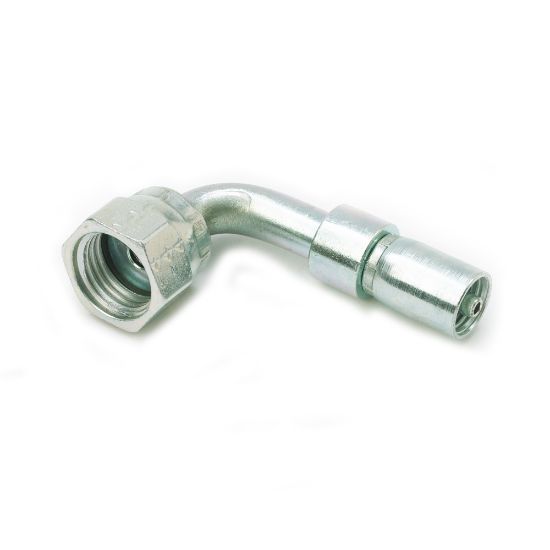

Parker 1J9CY-4-2 - Permanent Fittings for Parflex Hose – CY Series

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1J9CY-4-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Parflex Division
Industry	Transportation	Technology	Fluid & Gas Handling
Connection 2 Size	9/16"-18 inch	Specifications Met	N/A
Coating	Chromium 6 Free-plated	Division	Parflex Division
Hex Size	n/a	Product Type	Hose Fittings
Configuration	Hose to Port	For Fluid Type	Hydraulic Fluids
Connection 1 Type	Hose	Body Material	Steel
Application	Agriculture Equipment	Connection 1 Size	1/8 inch Hose I.D.
Connection Length	32 mm	Maximum Operating Pressure	41.4 MPa
Connection 2 Type	UNF Thread	Shape	Elbow 90° Short Drop
Hex Size 1	0.6875 inch (see drawing legend J)	Fitting Length	1.81 inch
Body Material	Steel	Hose I.D. (inch)	0.125"
Shape	Elbow 90° - Short Drop	Product Style	Female Seal-Lok - Swivel - Short Drop
Length (inch)	1.81"	Connection 2 Size	9/16"-18 UNF
