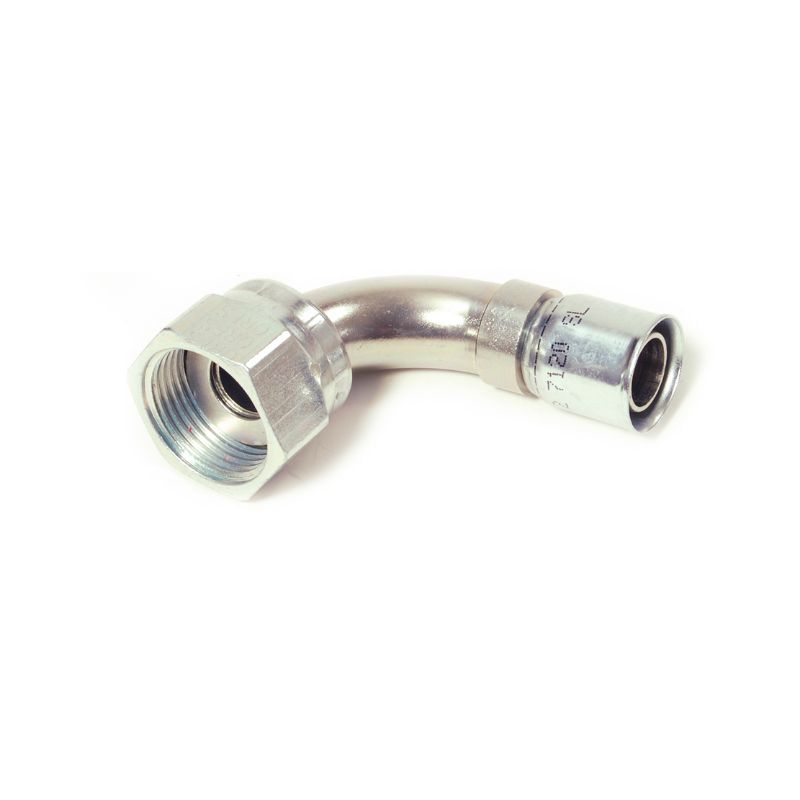

Parker 1J991N-6-6 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 1J991N-6-6 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 1J991N-6-6
Price: 36.16 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

9 In Stock

Norfolk, VA	6
Johnson City, TN	3 (Pickup only)

Partner Available:

39 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1J991N-6-6

$36.16/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Parflex Division
For Fluid Type	Pharmaceutical Fluids	Technology	Fluid & Gas Handling
Connection 1 Size	-6 (Size)	Body Material	Steel
Hex Size	n/a	Connection 2 Type	Female
Coating	Chromium 6 Free-plated	Connection Length	33 mm
Shape	Elbow 90° Short Drop	Division	Parflex Division
Hex Size 1	13/16 inch (see drawing legend H)	Application	Fluid Control
Product Type	Hose Fittings	Specifications Met	n/a
Tube Outside Diameter	n/a	Connection 1 Type	Hose
Maximum Operating Pressure	3000 psi (Dependent on hose)	Industry	Healthcare & Life Sciences
Product Series	91N	Brand	Parker
Connection 2 Size	11/16"-16 inch Thread	Fitting Length	1.91 inch (see drawing legend A)
Configuration	Hose to Port	Dimensional Weight	0.0529 lb
Hose I.D. (inch)	0.313"	Length (inch)	1.91"
Connection 2 Size	11/16"-16	Product Style	Female Seal-Lok - Swivel - 90° Elbow - Short Drop
