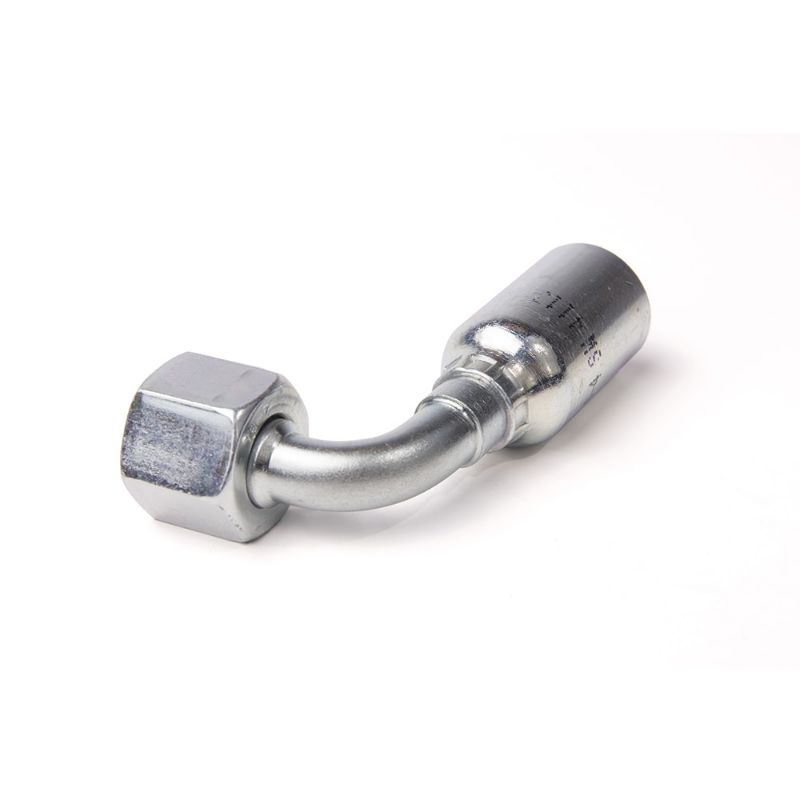

Parker 1J956-6-4 - Global Fittings - 56 Series - Inch

Name: Parker 1J956-6-4 - Global Fittings - 56 Series - Inch
SKU: 1J956-6-4
Price: 41.38 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:

2 Limited Stock

Jacksonville, FL	10
Norfolk, VA	2

Partner Available:

65 In Stock

Brand Parker

Part No. 1J956-6-4

$41.38

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Parflex Division	Industry	Transportation
Technology	Fluid & Gas Handling	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size	n/a
Configuration	Hose to Port	For Fluid Type	Oil
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Body Material	Steel	Application	Public Works
Maximum Operating Pressure	5000 psi (Dependent on hose)	Hex Size 2	n/a
Connection Length	30 mm Cut-off allowance	Connection 1 Size	1/4 inch Hose I.D.
Fitting Length	2.14 inch (see drawing legend A)	Shape	Elbow 90° Short Drop
Connection 2 Size	11/16"-16 inch Thread	Connection 2 Type	Seal-Lok®
Dimensional Weight	0.0195 lb	Hex Size 1	1-3/16 inch (see drawing legend J)
Shipping Weight	0.099 lb	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Length (inch)	2.14"
Connection 2 Size	11/16"-16	Product Style	Female Seal-Lok - Swivel - 90° Elbow - Short Drop
