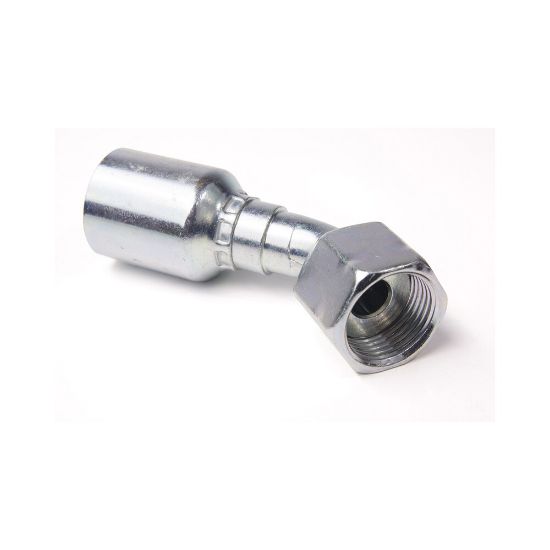

Parker 1J256-8-8 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1J256-8-8

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Parflex Division
Technology	Fluid & Gas Handling	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size	n/a
Configuration	Hose to Port	For Fluid Type	Oil
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Body Material	Steel	Application	Material Handling
Industry	Off-road Machinery	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Hex Size 2	n/a	Connection 1 Size	12.7 mm Hose I.D.
Dimensional Weight	0.0522 lb	Connection 2 Type	Swivel
Hex Size 1	15/16 inch (see drawing legend J)	Shape	Elbow 30°
Connection 2 Size	13/16"-16 inch Thread	Fitting Length	72 mm (see drawing legend A)
Shipping Weight	0.096 kg	Connection Length	43 mm Cut-off allowance
Materials of Construction	Steel	Hose I.D. (inch)	0.5"
Length (inch)	2.84"	Connection 2 Size	13/16"-16
Product Style	Female Seal-Lok - Swivel - 30° Elbow
