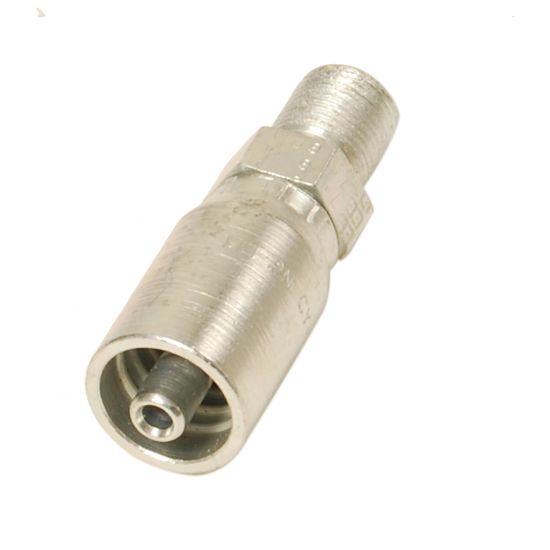

Parker 1GKCY-2-3 - Permanent Fittings for Parflex Hose – CY Series

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1GKCY-2-3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Division	Parflex Division	Technology	Fluid & Gas Handling
Specifications Met	N/A	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size 1	n/a
Product Type	Hose Fittings	Connection 1 Type	Hose
Body Material	Steel	Application	Industrial Hydraulics
Industry	Off-road Machinery	Hex Size	0.5 inch (see drawing legend H)
For Fluid Type	Pneumatic Media	Connection Length	25 mm
Maximum Operating Pressure	414 bar	Connection 1 Size	3/16 inch
Configuration	Zerk Bulkhead to Hose	Fitting Length	47.244 mm
Connection 2 Size	1/8"-27 inch Thread, Male NPSM with 1/4"-28 Female UNF	Connection 2 Type	Grease Zerk Bulkhead w/Integrated Zerk
Shape	Straight	Body Material	Steel
Hose I.D. (inch)	0.1875"	Length (inch)	1.86"
Product Style	Bulkhead W/Zerk Port Integrated	Connection 2 Size	1/8"-27 NPSM Male with 1/4"-28 UNF Female
