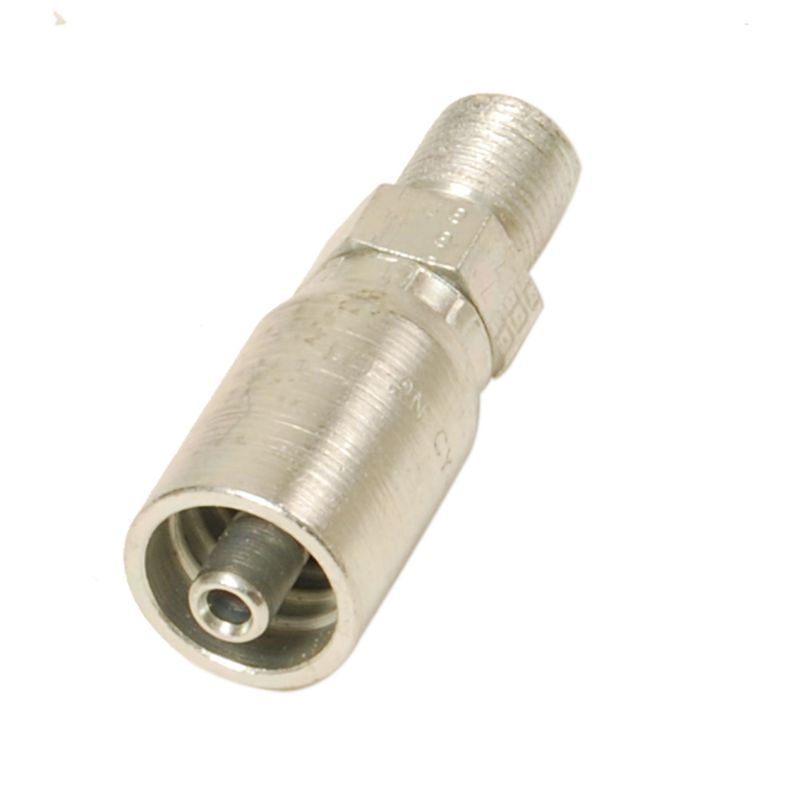

Parker 1GKCY-2-2 - Permanent Fittings for Parflex Hose – CY Series

Name: Parker 1GKCY-2-2 - Permanent Fittings for Parflex Hose – CY Series
SKU: 1GKCY-2-2
Price: 12.52 USD
Availability: InStock

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

AFP Availability:

61 In Stock

Richmond, VA	40
Knoxville, TN	6
Fayetteville, NC	4
Johnson City, TN	4 (Pickup only)
Summerville, SC	4
Knoxville, TN	3

Partner Available:

1297 In Stock

Brand Parker

Part No. 1GKCY-2-2

$12.52/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Division	Parflex Division
Technology	Fluid & Gas Handling	Specifications Met	N/A
Coating	Chromium 6 Free-plated	Division	Parflex Division
Hex Size 1	n/a	Product Type	Hose Fittings
For Fluid Type	Hydraulic Fluids	Connection 1 Type	Hose
Body Material	Steel	Application	Industrial Hydraulics
Industry	Off-road Machinery	Connection Length	7/8 inch Cut-off allowance
Hex Size	0.5 inch (see drawing legend H)	Connection 1 Size	1/8 inch Hose I.D.
Maximum Operating Pressure	414 bar	Configuration	Zerk Bulkhead to Hose
Fitting Length	36.83 mm	Connection 2 Size	1/8"-27 inch Thread, Male NPSM with 1/4"-28 Female UNF
Connection 2 Type	Grease Zerk Bulkhead w/Integrated Zerk	Shape	Straight
Body Material	Steel	Hose I.D. (inch)	0.125"
Product Style	Bulkhead W/Zerk Port Integrated	Length (inch)	1.45"
Connection 2 Size	1/8"-27 NPSM Male with 1/4"-28 UNF Female
