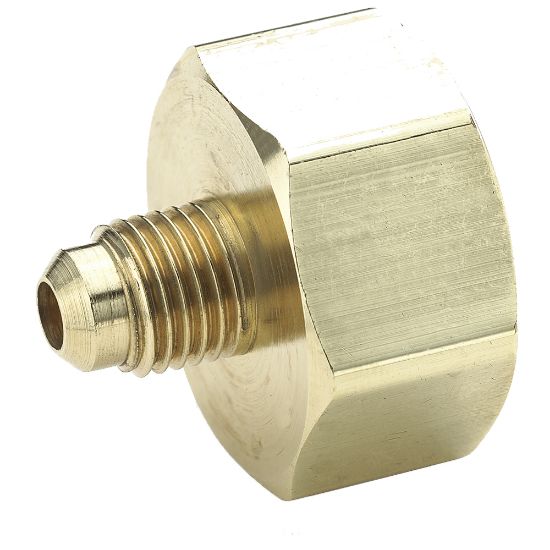

Parker 1F-4-12 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1F-4-12

$27.36/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Brass
Division	Fluid System Connectors Division	Minimum Operating Temperature	-65 °F
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Specifications Met	SAE J512, SAE J513	Maximum Operating Pressure	1,400 psi
Brand	Parker	O-Ring Material	Fluorocarbon
Maximum Operating Temperature	121 °C	Technology	Fluid & Gas Handling
Division	Fluid System Connectors Division	Nut Material	Brass
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Connection 2 Type	Female Pipe
Connection 1 Type	Flare	Connection 1 Thread Size	7/16-20 inch
Connection 1 Tube Outside Diameter	1/4 inch	Connection 3 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 2 Thread Size	3/4 inch
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Product Style	Flare to Female Pipe	Shape	Drum adapter
