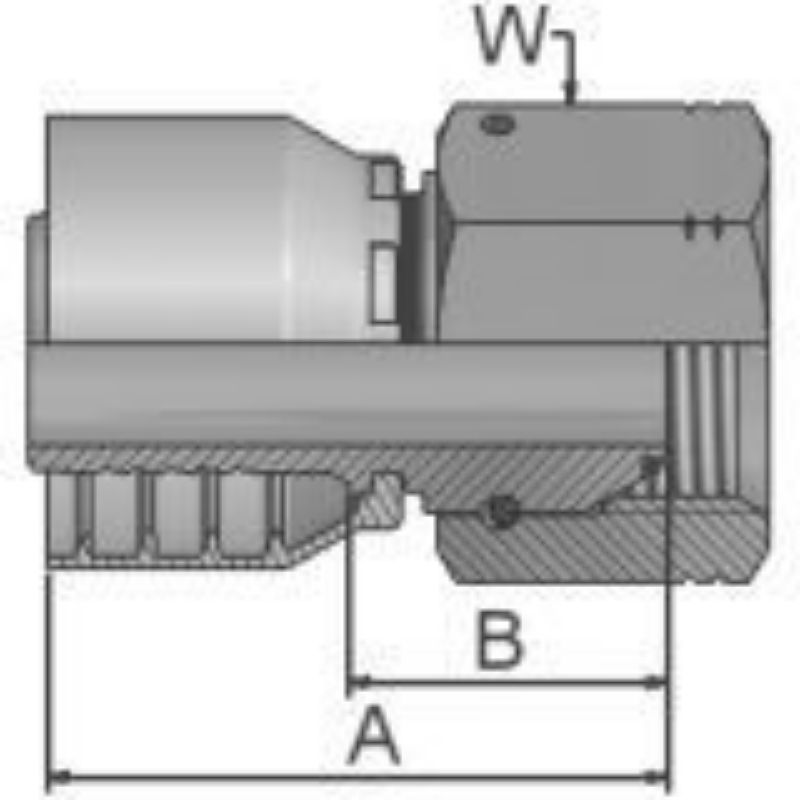

Parker 1EA43-8-8 - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

AFP Availability:	Quote Required
Partner Available:	99 In Stock

Brand Parker

Part No. 1EA43-8-8

$32.80/each

Products specifications

Attribute name	Attribute value
UOM	EA	Nut Hex Size	n/a
Shape	Straight	Hose Inside Diameter	1/2 inch
Connection Size	n/a	Materials of Construction	Steel
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Back-Up Hex Size	n/a
Division	Hose Products Division	Flange Size	n/a
Banjo Port Diameter	n/a	Port Size	1/2 inch
Nominal Inside Diameter	DN 12	Product Style	Female BSP Parallel Pipe - Swivel - DKOR (60° Cone)
Shape	Straight	Materials of Construction	Steel
Port Connection	1/2"	Hose I.D. (size)	-8
Hex Type	Metric	Product Style	Female BSP Parallel Pipe - Swivel (60° Cone with O-Ring)
