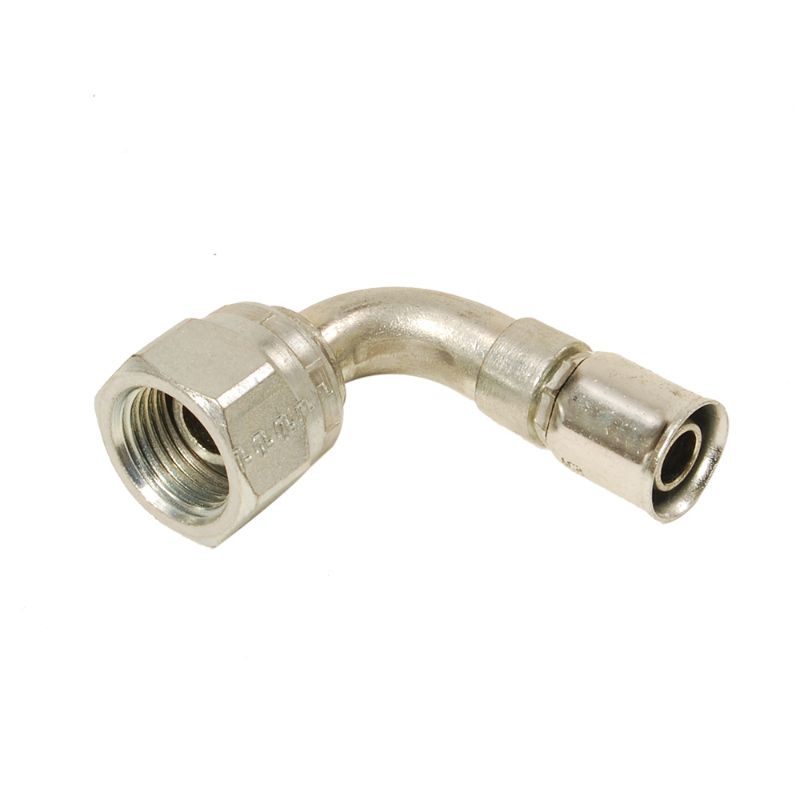

Parker 1B291N-8-8 - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1B291N-8-8

$115.89/each

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Industry	Transportation	Product Series	91N
Configuration	Hose to Port	Connection 2 Size	PF-1/2"-14 inch Thread
Fitting Length	2.04 inch (see drawing legend A)	Dimensional Weight	0.0637 lb
For Fluid Type	Steam	Division	Parflex Division
Coating	Chromium 6 Free-plated	Technology	Fluid & Gas Handling
Body Material	Steel	Connection 2 Type	Swivel
Connection Length	1-3/8 inch Cut-off allowance (see drawing legend B)	Connection 1 Size	-8 (Size)
Hex Size	n/a	Application	Semiconductor
Product Type	Hose Fittings	Shape	Straight
Division	Parflex Division	Connection 1 Type	Hose
Specifications Met	n/a	Hex Size 1	27 mm (see drawing legend H)
Tube Outside Diameter	n/a	Maximum Operating Pressure	207 bar
Hose I.D. (inch)	0.406"	Connection 2 Size	PF-1/2"-14
Product Style	Female BSP Parallel Pipe - Swivel 90° Elbow (60° Cone)	Length (inch)	2.04"
