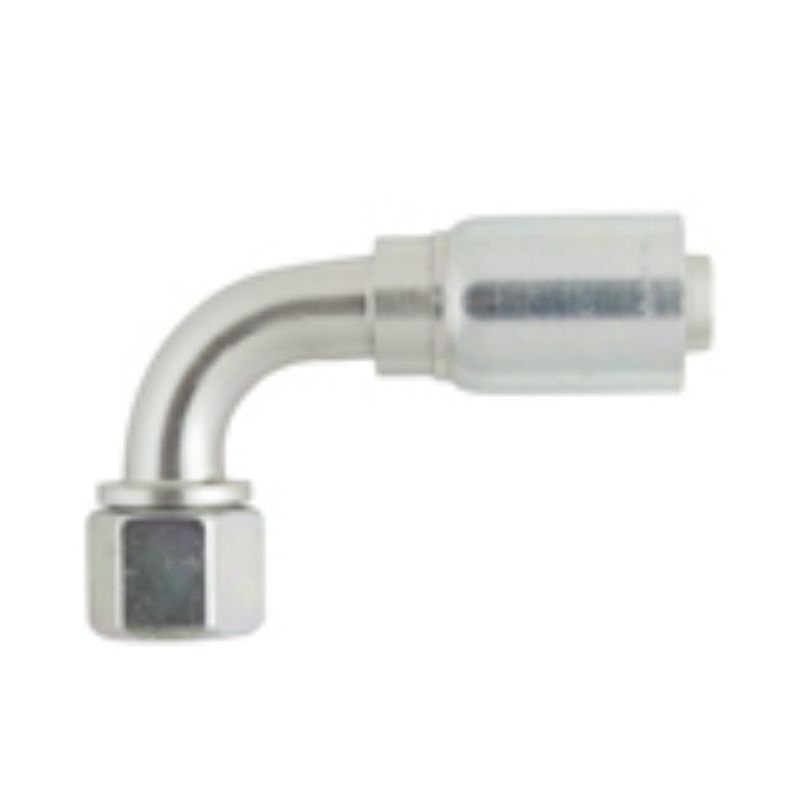

Parker 1B277-12-12 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 1B277-12-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Hose Products Division
Flange Size	n/a	Back-Up Hex Size	n/a
Banjo Port Diameter	n/a	Materials of Construction	Steel
Hose Inside Diameter	1-1/2 inch	Connection Size	3/4"-14 inch Thread
Port Size	1-1/2 inch	Nut Hex Size	32 mm
Product Style	Female BSP Parallel Pipe - Swivel - (60° Cone)	Shape	Elbow 90° (60° Cone)
Materials of Construction	Steel	Hose I.D. (inch)	3/4"
Port Connection	3/4"	Product Style	Female BSP Parallel Pipe - Swivel (60° Cone)
Shape	Elbow 90° - (60° Cone)
