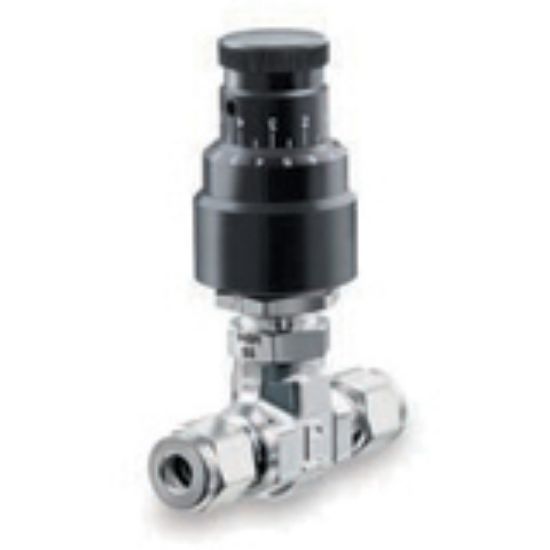

Parker 1A-H1A-BN-B-NS - Metering Valve, 250 PSI - HR Series

Parker's HR Series Metering Valves provide the highest degree of precision metering for moderate pressure applications up to 250 PSI (17 BAR). Flow can be controlled from a Cv of 0.00034 to a Cv of 0.0900.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1A-H1A-BN-B-NS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Instrumentation Products Division	Body Material	BRASS
Maximum Working Pressure (psi)	250	Connection 2 Size	1/16"
Maximum Working Temperature (F)	250	Seal Material	Nitrile rubber
Connection 1 Size	1/16"	Connection 1 Style	Two Ferrule Compression
Connection 2 Style	Two Ferrule Compression	Body Shape	Angle
Handle	No Handle(Slotted Stem)	Flow Capacity (Cv)	0.0008
Maximum Working Pressure (Bar)	17	Minimum Working Temperature (C)	-10
