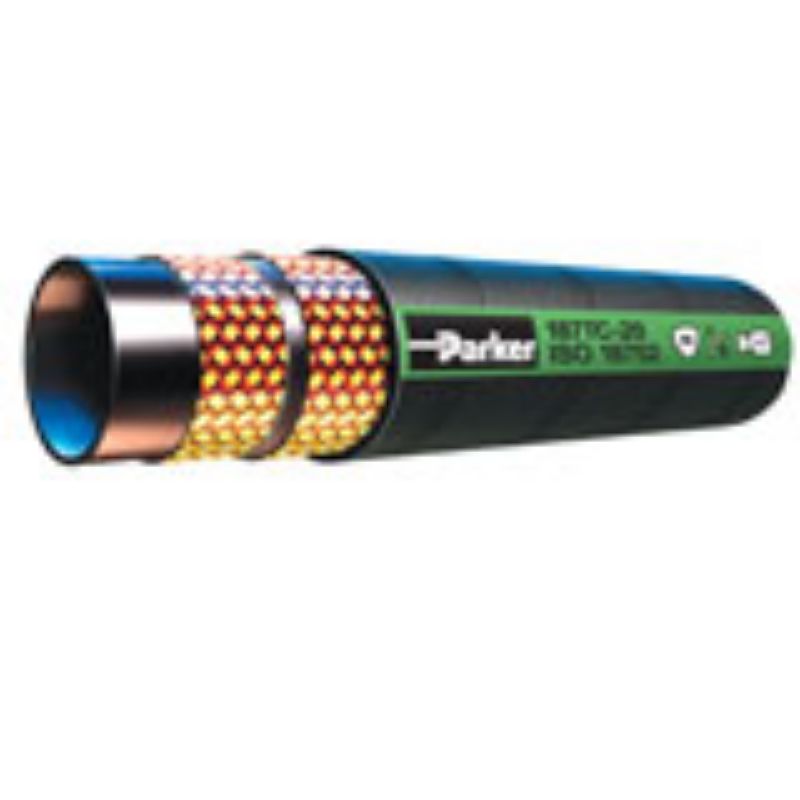

Parker 187-10 - Hydraulic Constant Working Pressure Hose 1000 PSI - GlobalCore 187 Hose

Robust and reliable 187 hose expands the unified GlobalCore series of ISO 18752 hoses as the first and only 1,000 PSI constant working pressure hydraulic hose offered in sizes -8 through -48.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 187-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	1000 psi	Minimum Bend Radius	3 inch
Maximum Operating Temperature	100 °C	Application	Transportation
Size	-10	Media	Petroleum Hydraulic Fluids (Petroleum Base)
Inside Diameter	5/8 inch	Specifications Met	ISO 18752
Weight	0.49 kg/m	Cover Material	Synthetic Rubber
Hose Cover Type	Standard Cover	Outside Diameter	0.930 inch
Compatible Fitting	43 Series	Vacuum Pressure Rating	609.6 mm-Hg
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	1 Braid of Steel Wire
Nominal Hose Inside Diameter	16 mm	Hose I.D. (size)	-10
Hose Cover Type	Standard

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

ABS Type Approval Cert 187 Hose (PDF)
