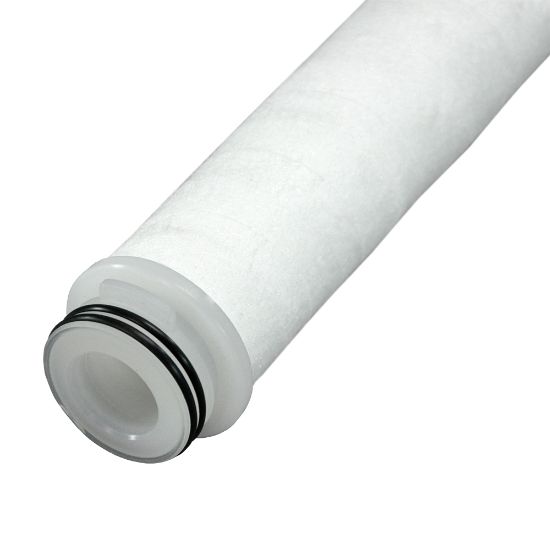

Parker 1830 - PEACH® DYNACEPTOR™ NGGC & PZC Gas Coalescer Cartridge

PEACH® DynaCeptor™ NGGC & PZC Gas Coalescers use PEACH® technology media to provide effective removal of small aerosol mist and liquid droplets from natural gas streams.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1830

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Process Filtration Division	Brand	PECO
Product Type	Filter Cartridge	Division	Industrial Process Filtration Division
Technology	Filtration	Industry	Oil and Gas
Application	Gas Coalescing	Flow Direction	Inside-to-Outside
Filter Construction	PEACH Depth	Changeout Pressure Differential	12 to 14 psid
Maximum Pressure Differential	25 psid	Product Series	NGGC
Quantity per Box	4.0	pH Range	2-14
Core Material	Tin-Plated Steel	Filter Material	Polypropylene
Cartridge Length	30"	Maximum Operating Temperature	180 F
Body Material	N/A	Seal Material	Viton
End Cap Material	Polypropylene	Nominal Inside Diameter	1"
End Cap Configuration	SOE - Closed top, open bottom w/ external 226 o-ring & locking ears	Micron Rating	PL-20: 99.99% ≥ 0.3 Liquid Droplets, ≥8PPB Effluent
Model Number	ELMT NGGC-230-JC-003LV PL-20	Nominal Outside Diameter	2.8"
