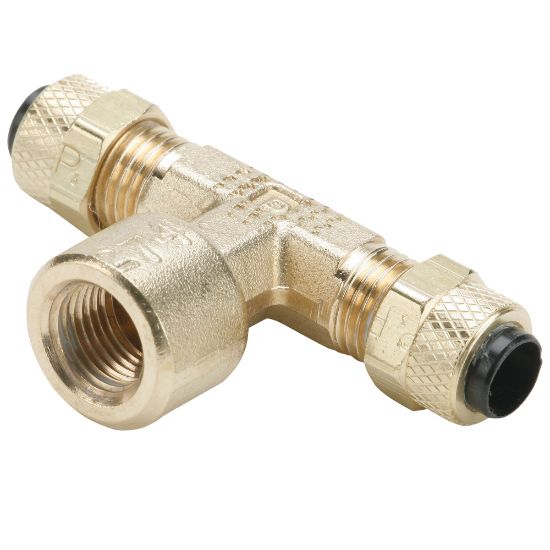

Parker 177P-4-6 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 177P-4-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Temperature	65 °C	Maximum Operating Pressure	150 psi
Nut Material	Brass	Application	Dental, Packaging, Machine tool, Car wash
Minimum Operating Temperature	-17 °C	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Sleeve Material	Brass, Acetal Copolymer	Shape	Branch Tee
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Thread Size (inch)	3/8
Connection 2 Style	Female Pipe	Style	Tube to Female Pipe
