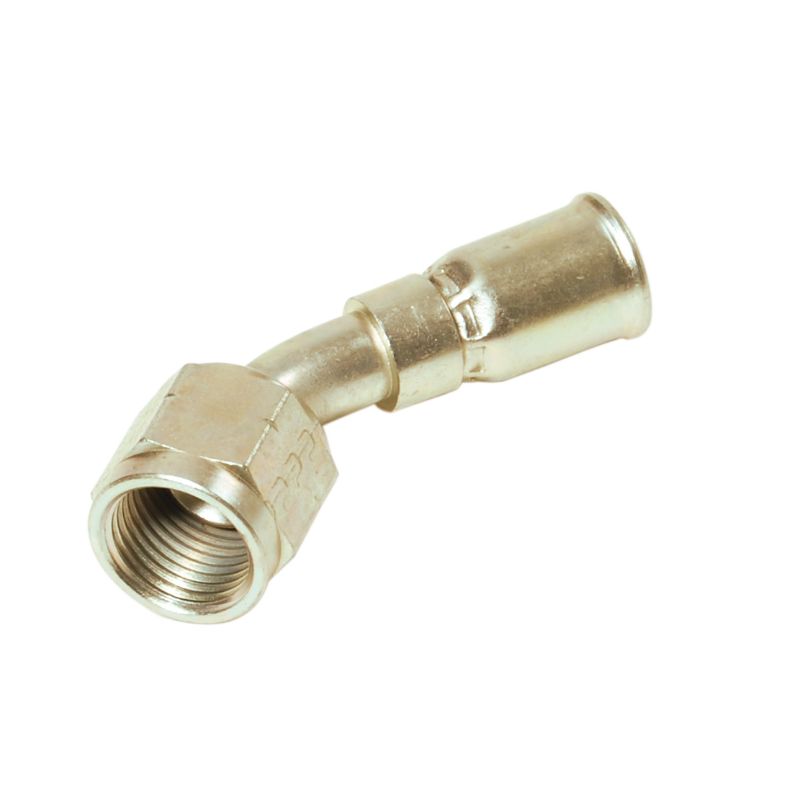

Parker 17791N-12-12 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 17791N-12-12 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 17791N-12-12
Price: 81.67 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

8 In Stock

Norfolk, VA	7
Richmond, VA	1 (Pickup only)

Partner Available:

20 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 17791N-12-12

$81.67/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Product Series	91N
Industry	Food & Beverage	Brand	Parker
Maximum Operating Pressure	20.7 MPa	Connection 2 Size	1-1/16"-14 inch Thread
Configuration	Hose to Port	Fitting Length	78 mm
Dimensional Weight	1.0288 lb	For Fluid Type	Steam
Division	Parflex Division	Technology	Fluid & Gas Handling
Body Material	Steel	Connection 2 Type	Female
Connection Length	2-7/16 inch Cut-off allowance (see drawing legend B)	Coating	Chromium 6 Free-plated
Connection 1 Size	15.9 mm	Hex Size	n/a
Shape	Elbow 45°	Division	Parflex Division
Application	General Industrial	Specifications Met	n/a
Product Type	Hose Fittings	Hex Size 1	1-1/4 inch (see drawing legend H)
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Hose I.D. (inch)	0.625"	Length (inch)	3.07"
Connection 2 Size	1-1/16"-14	Product Style	Female SAE 45 / Swivel - 45° Elbow
