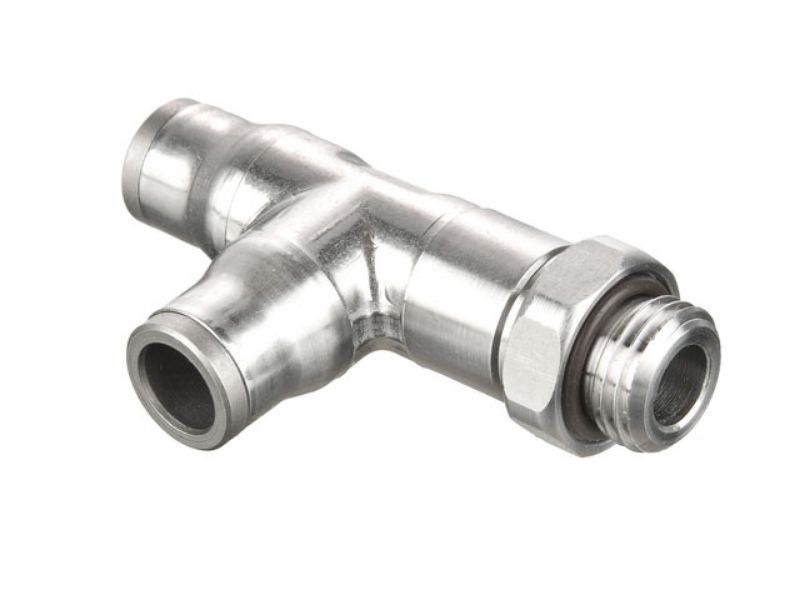

Parker 171PLS-4M-4G - Prestolok PLS Series 171PLS - Metric-BSPP/Metric

Metric-BSPP/Metric Male Run Tee Swivel - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 171PLS-4M-4G

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Thread 1	1/4 BSPP
Outer Diameter 1	4 mm	Pressure Range	7 to 290 psi
Configuration Sub-Type	Male Run Tee Swivel	Thread 1	1/4 BSPP
Configuration Type	Tube to Male	Material	Stainless Steel
Inch/Metric	Metric-BSPP/Metric	Parker Group	Fluid Connector
Outer Diameter 1 Inch/mm	mm	Parker Division	Fluid Systems Connector (Brass Products)
Series	Prestolok PLS	Operating Temperature	-4˚ to +302˚F
Material - Seal	FKM Fluoroelastomer	Outer Diameter 1	4 mm
Thread 1 Type	BSPP	Trade Name	Prestolok
