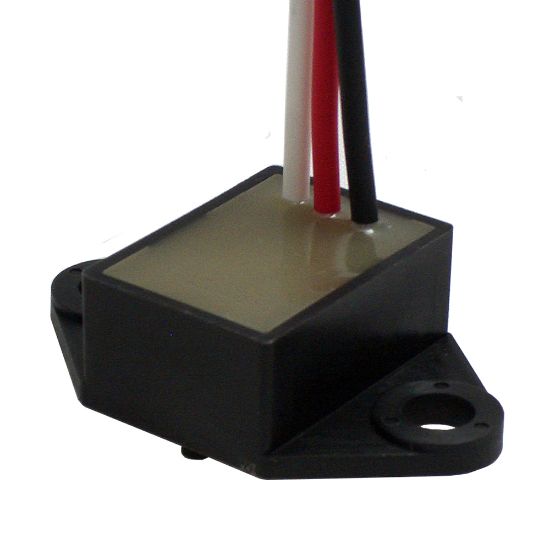

Parker 171852ECD - Accelerometer and Inclinometer Sensors - ACC Series

Parker's Accelerometer and Inclinometer Sensors are MEMs devices with an output voltage dependent on the amount of inertial force applied . The accelerometers and inclinometers have an inertial range up to ±1.5G.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 171852ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Housing Material	Glass-filled Nylon
Ingress Protection Rating	67	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	125 °C	Sensor Type	Tip/tilt
Electrical Connection	DTM04-3P	Signal Output	0.5 to 4.5 VDC
Mounting Option	Flanged	Power Supply Voltage	5 VDC Regulated
Number of Outputs	1	Output Voltage	±1.5G
Operating Current	10 mA max.	Mounting Hole Diameter	7.14 mm (x2)
Model Number	ACC50
