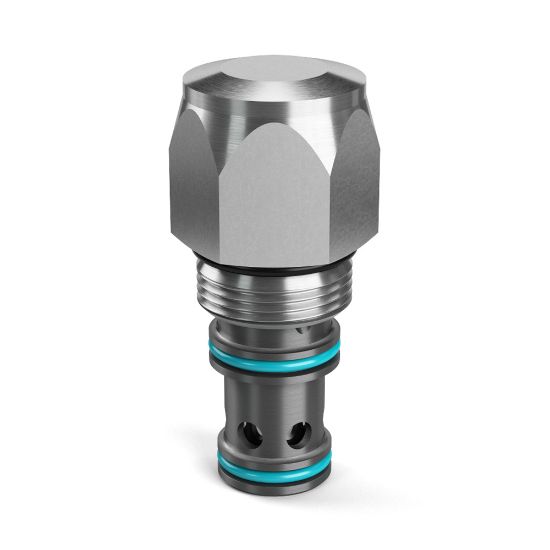

Parker 16SLC3-B-50 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16SLC3-B-50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.33 kg	Flow Rate	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Vented	External	Division	Hydraulic Systems Division
Function	Logic Valve	Leak Rate	82
Configuration	Normally Open (NO)	Seal Material	Polyurethane EPS
Actuation Type	Vent to Close	Flow Direction	Side to Nose (2-1)
For Fluid Type	Synthetic Hydraulic Fluids	Operation Type	Pilot Operated
Pilot Location	Internal	Valve Material	Steel
Switching Pressure	50 psi	Operating Temperature	-35 to 225 °F
Filter Efficiency Rating	SAE Class 4	Maximum Operating Pressure	3500 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	240 bar
Maximum Operating Temperature	225 °F	Minimum Operating Temperature	-35 °F
Dampening Orifice Included	Yes	Cavity Size	C16-3S
Maximum Flow Rate	50 Gal/min	Installation Torque	54 Nm
Configuration	Normally Open	Seal Material	Polyurethane EPS
Switching Pressure	50 PSI, 3.5 BAR	Flow Direction	Side to Nose (2-1)
Dampening Orifice Included	Yes	Maximum Flow Rate	50 GAL/MIN, 189 L/MIN
