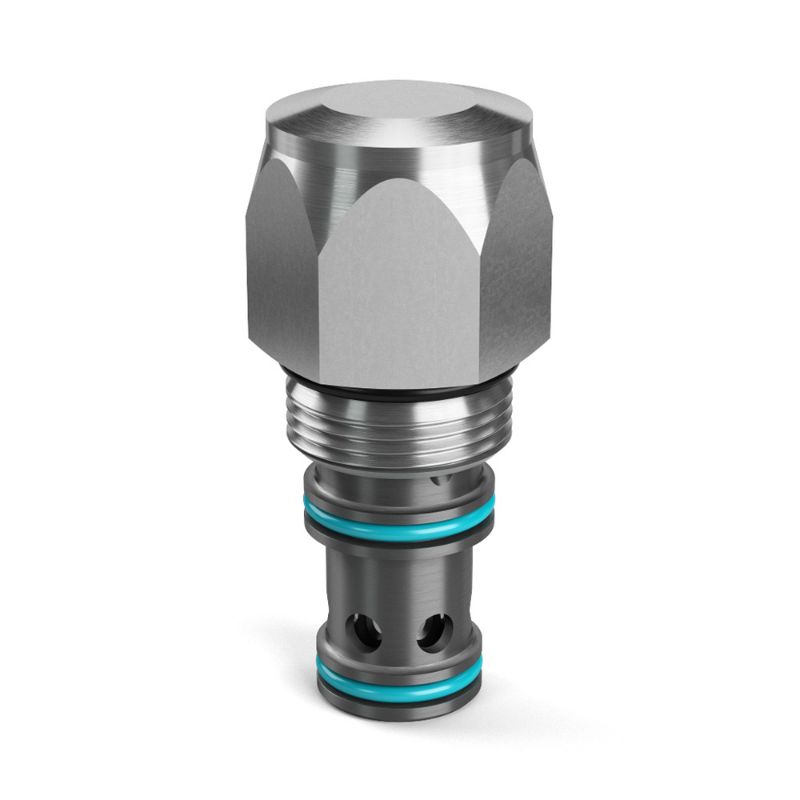

Parker 16SLC3-B-150 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16SLC3-B-150

$215.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	240 bar
Function	Logic Valve	Flow Direction	Side to Nose (2-1)
For Fluid Type	Synthetic Hydraulic Fluids	Division	Hydraulic Cartridge Systems Division
Configuration	Normally Open (NO)	Cavity Size	C16-3S
Dampening Orifice Included	Yes	Maximum Operating Temperature	225 °F
Switching Pressure	150 psi	Leak Rate	82
Body Material	n/a	Maximum Flow Rate	189 L/min
Operation Type	Pilot Operated	Division	Hydraulic Systems Division
Operating Temperature	-37 to 107 °C	Pilot Location	Internal
Minimum Operating Temperature	-37 °C	Flow Rate	n/a
Installation Torque	40 lb-ft	Actuation Type	Vent to Close
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	3500 psi	Seal Material	Polyurethane EPS
Valve Material	Steel	Vented	External
Weight	0.78 lb	Configuration	Normally Open
Seal Material	Polyurethane EPS	Switching Pressure	150 PSI, 10.3 BAR
Flow Direction	Side to Nose (2-1)	Dampening Orifice Included	Yes
Maximum Flow Rate	50 GAL/MIN, 189 L/MIN
