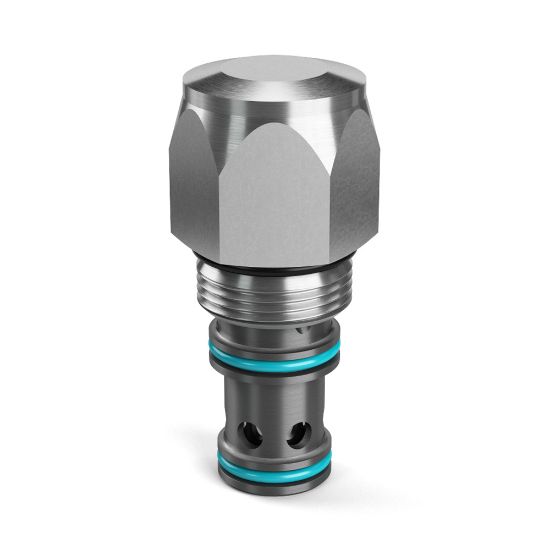

Parker 16SLC3-A-25V - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16SLC3-A-25V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Maximum Operating Temperature	400
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Valve Systems Division	Vented	Internal
Division	Hydraulic Systems Division	Function	Logic Valve
Leak Rate	82 cm3/min 3500 Psi (240 bar)	Configuration	Normally Open (NO)
Actuation Type	Pilot to Close	Flow Direction	Side to Nose (2-1)
For Fluid Type	Synthetic Hydraulic Fluids	Operation Type	Pilot Operated
Pilot Location	External	Valve Material	Steel (all parts)
Switching Pressure	25	Operating Temperature	-15 to 400
Filter Efficiency Rating	SAE Class 4	Maximum Operating Pressure	3500
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	3500
Minimum Operating Temperature	-15	Dampening Orifice Included	No
Weight	0.78	Cavity Size	C16-3S
Maximum Flow Rate	50	Installation Torque	40
Seal Material	Fluorocarbon	Configuration	Normally Open
Switching Pressure	25 PSI, 1.7 BAR	Flow Direction	Side to Nose (2-1)
Dampening Orifice Included	No	Maximum Flow Rate	50 GAL/MIN, 189 L/MIN
