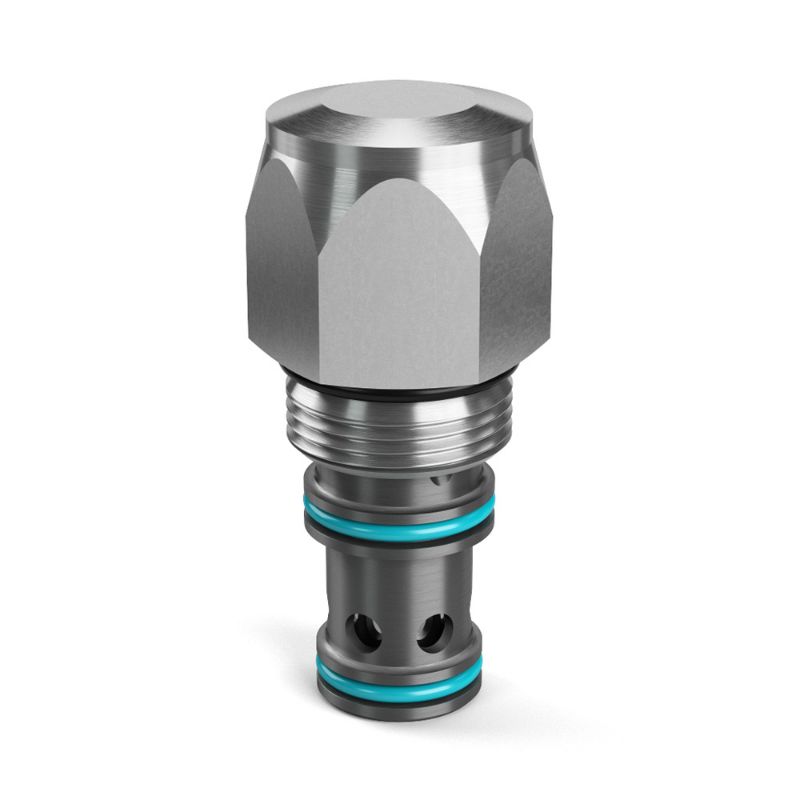

Parker 16SLC2-B-75 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 16SLC2-B-75

$97.13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	0.33 kg
Flow Rate	n/a	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Vented	External
Division	Hydraulic Systems Division	Function	Logic Valve
Leak Rate	82	Configuration	Normally Closed (NC)
Seal Material	Polyurethane EPS	Actuation Type	Vent to Open
Flow Direction	Nose to Side (1-2)	For Fluid Type	Synthetic Hydraulic Fluids
Operation Type	Pilot Operated	Pilot Location	Internal
Valve Material	Steel	Switching Pressure	5.2 bar
Operating Temperature	-35 to 225 °F	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Pressure	3500 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	240 bar	Maximum Operating Temperature	225 °F
Minimum Operating Temperature	-37 °C	Dampening Orifice Included	Yes
Cavity Size	C16-3S	Maximum Flow Rate	189 L/min
Installation Torque	54 Nm	Configuration	Normally Closed
Seal Material	Polyurethane EPS	Switching Pressure	75 PSI, 5.2 BAR
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	Yes
Maximum Flow Rate	50 GAL/MIN, 189 L/MIN
