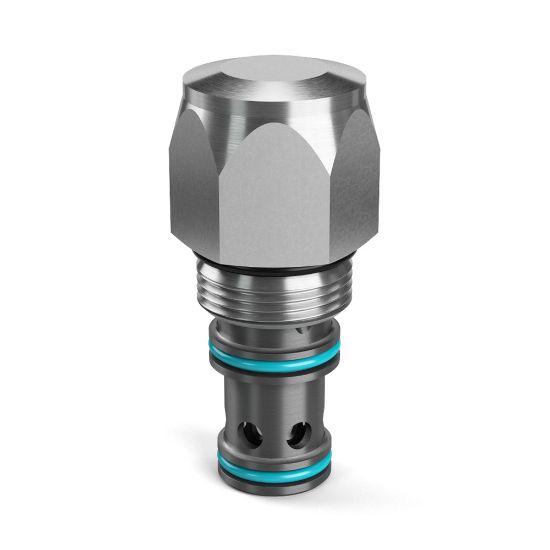

Picture of Parker 16SLC1-C-75 - Poppet Type Logic Element

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 16SLC1-C-75 - Poppet Type Logic Element

Parker logic elements are screw-in type cartridge valves that can be used to control flow, pressure, or direction up to 303 lpm and 240 bar, and when applied in the proper arrangements, can perform multi-task control functions.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 16SLC1-C-75
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Minimum Operating Temperature-35Body Materialn/a
DivisionHydraulic Valve Systems DivisionVentedExternal
DivisionHydraulic Systems DivisionFunctionLogic Valve
Leak Rate5 drops/min @ 3500 PSI (240 BAR)ConfigurationNormally Closed (NC)
Seal MaterialPolyurethane EPSActuation TypeVent to Open
Flow DirectionSide to Nose (2-1) preferredFor Fluid TypeSynthetic Hydraulic Fluids
Operation TypePilot OperatedValve MaterialSteel (all parts)
Switching Pressure75Filter Efficiency RatingSAE Class 4
Maximum Operating Pressure3500Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating3500Maximum Operating Temperature225
Weight0.78Flow Rate50
Cavity SizeC16-3SPilot Locationn/a
Maximum Flow Rate50Installation Torque40
Operating Temperature-35 to 225Seal MaterialPolyurethane EPS
Switching Pressure75 PSI, 5.2 BARFlow Rate50 GAL/MIN, 189 L/MIN
ConfigurationVent to Open
