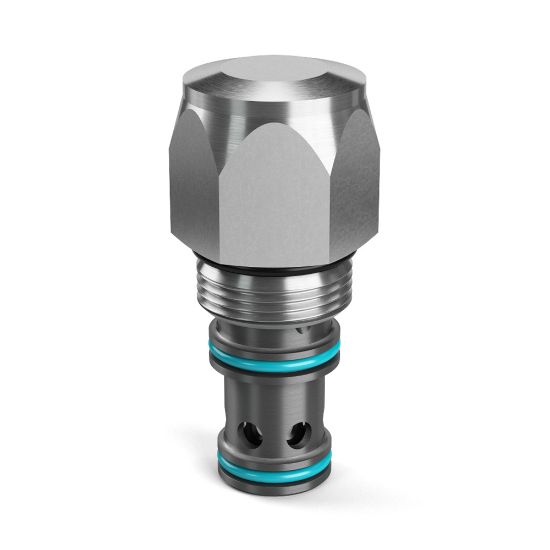

Parker 16SLC1-A-150 - Poppet Type Logic Element

Parker logic elements are screw-in type cartridge valves that can be used to control flow, pressure, or direction up to 303 lpm and 240 bar, and when applied in the proper arrangements, can perform multi-task control functions.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16SLC1-A-150

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	107 °C	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Vented	n/a
Division	Hydraulic Systems Division	Function	Logic Valve
Leak Rate	5	Configuration	Normally Closed (NC)
Seal Material	Polyurethane EPS	Actuation Type	Pilot to Close
Flow Direction	Side to Nose (2-1)	For Fluid Type	Synthetic Hydraulic Fluids
Operation Type	Pilot Operated	Pilot Location	External
Valve Material	Hardened Steel	Switching Pressure	150 psi
Operating Temperature	-37 to 107 °C	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Pressure	240 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	240 bar	Minimum Operating Temperature	-37 °C
Weight	0.78 lb	Flow Rate	50 Gal/min
Cavity Size	C16-3S	Maximum Flow Rate	50 Gal/min
Installation Torque	54 Nm	Configuration	Pilot to Close
Seal Material	Polyurethane EPS	Switching Pressure	150 PSI, 10.3 BAR
Flow Rate	50 GAL/MIN, 189 L/MIN
