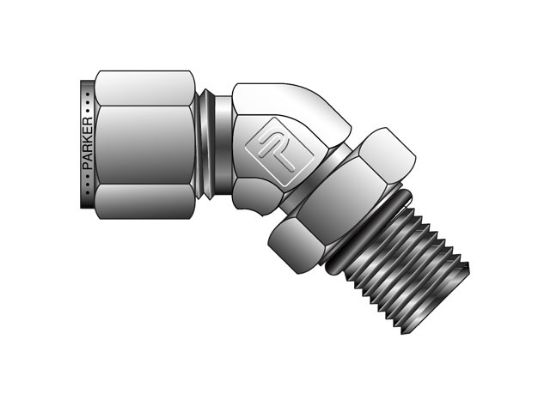

Parker 16M5VEL16-316 - A-LOK Inch Tube 45° Male Elbow SAE/MS Straight Thread - M5VEL

Instrumentation Tube Fitting - 45° Elbow 45° Male Elbow SAE/MS Straight Thread for use with Inch Tubing

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16M5VEL16-316

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	End 1	1 Inch
Pkg Qty	5	Material	Stainless Steel
End 2	1 Inch	End 3	1 5/16-12 SAE
Parker Group	Fluid Connector	Inch/Metric	Inch
End 1	1 Inch	End 1 Type	Inch
Material	Stainless Steel	Parker Division	Instrumentation Products
Configuration Type	45° Elbow	Tube Fitting/Adapter Type	Bite Type, A-LOK Double Ferrule Flareless
End 2 Type	Inch	Trade Name	CPI/A-LOK
Series	A-LOK	Ferrule Type	Double
End 3 Type	SAE	End 2	1 Inch
Configuration Sub-Type	Male 45° Elbow - Flareless / SAE	End 3	1 5/16-12 SAE

Product resources

Instrumentation Fittings (PDF)
