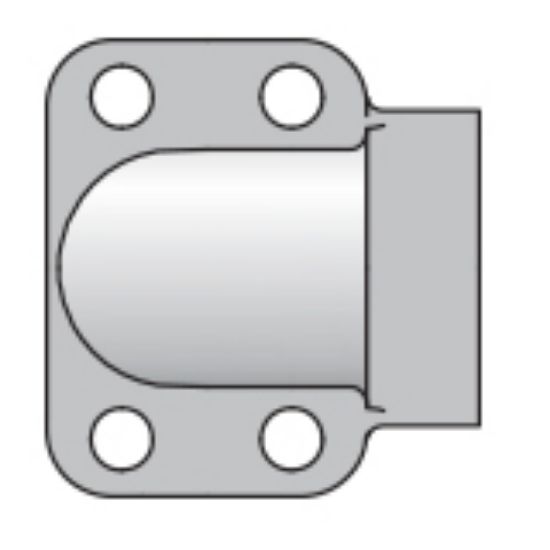

Parker 16GEQ1PSXK - 4-Bolt Hydraulic Flanges and Components

Parker's 4-bolt hydraulic flanges and components are proven leak-free connections, especially suited for larger sizes, higher pressures and assembly in tight quarters.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16GEQ1PSXK

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Dynamic Pressure	4000	Includes	Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring.
Specifications Met	ISO 6162-1	O-Ring Material	n/a
Division	Tube Fittings Division	Flange Size	Code 61
Connection Style	Block Elbow Kit	Flange Size (inch)	1
Connection Thread Size (inch)	1-11 1/2	Connection Pipe O.D. (inch)	na
Flange	Code 61	Face Style	Flat Face
Connection Tube O.D. (inch)	na	Connection 1 Style	NPTF
Body Material	Steel

Product resources

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)
