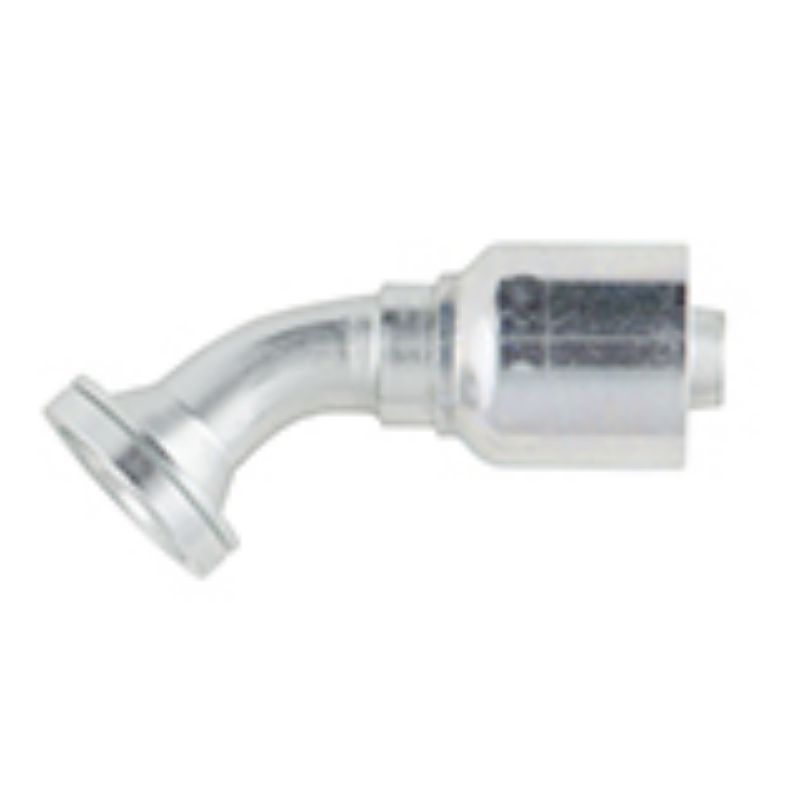

Parker 16F77-12-10 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 16F77-12-10

$92.12/each

Products specifications

Attribute name	Attribute value
UOM	EA	Back-Up Hex Size	n/a
Materials of Construction	Steel	Division	Hose Products Division
Banjo Port Diameter	n/a	Flange Size	3/4
Port Size	3/4	Product Style	SAE Code 62 Flange Head
Shape	Elbow 45°	Nut Hex Size	n/a
Hose Inside Diameter	5/8	Connection Size	n/a
Materials of Construction	Steel	Hose I.D. (inch)	5/8"
Port Connection	3/4"	Shape	Elbow 45°
Product Style	SAE Code 62 Flange Head
