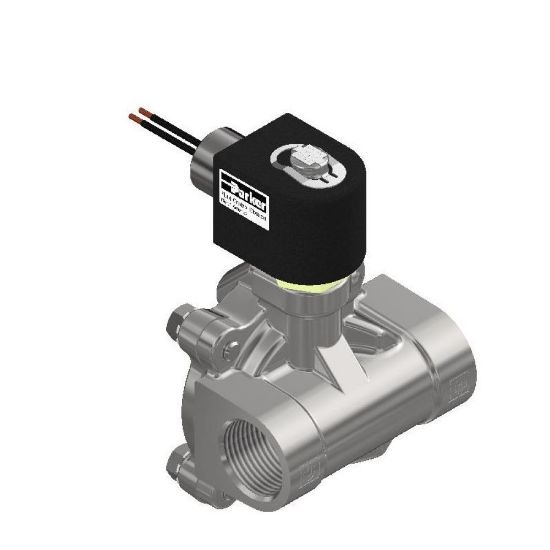

Parker 16F24O6164ACH4C05 - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16F24O6164ACH4C05

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	316 Stainless Steel	Division	Fluid Control Division
Media	General Purpose	Function	Normally Open
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Port Size	1 inch
Port Type	NPT	Installation	IOM 7235
Orifice Size	1 inch	Input Voltage	120/60, 110/50 VAC
Seal Material	NBR	Actuation Type	Internally Piloted
Insulation Class	Class H	Power Consumption	11.0 W
Specifications Met	UL, CSA Listed General Purpose Valve	Valve Configuration	2 Way
Main Flow Coefficient	13.0 Cv	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	180.0 °F	Preventive Maintenance Kit	16F24O6164ACHR
Maximum Ambient Temperature	130.0 °F	Maximum Pressure Differential	125.0 psi
Minimum Pressure Differential	5.0 psi	Body Material	316 Stainless Steel
Seal Material	NBR	Media	General Purpose
Function	Normally Open	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Port Size	1	Port Type	NPT
Installation	IOM 7235	Orifice Size	1
Input Voltage	120/60, 110/50	Actuation Type	Internally Piloted
Insulation Class	Class H	Power Consumption	11.0
Specifications Met	CE - Low Voltage, EMC	Valve Configuration	2 Way
Main Flow Coefficient	13.0	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	180.0	Preventive Maintenance Kit	16F24O6164ACHR
Maximum Ambient Temperature	130.0	Maximum Pressure Differential	125.0
Minimum Pressure Differential	5.0
