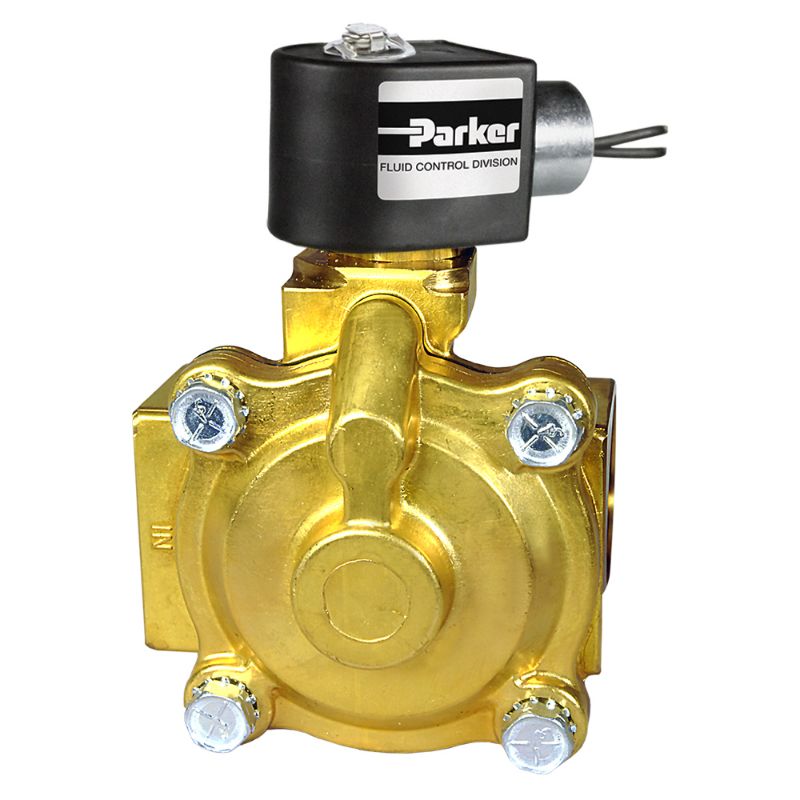

Parker 16F24O2164ACFPH01 - Parker 2-Way Normally Open, 1" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1" NPT Solenoid Valves provide operating pressures of 125 PSI and flow factors of 13 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16F24O2164ACFPH01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Brass	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Open (NO)
Coil Type	DIN Form A, Class F	Port Size	1
Port Type	NPT	Input Voltage	24/60
Seal Material	NBR	Actuation Type	Piloted
Power Consumption	11	Maximum Fluid Temperature	180
Maximum Pressure Differential	125	Minimum Pressure Differential	5
Valve Type	2-Way	Orifice 1 Size	1
Orifice 2 Size	n/a	Product Series	Gold Ring Series
Number of Ports	2	Flow Coefficient 1	13
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Minimum Fluid Temperature	0	Coil Type	DIN Form A, Class F
Voltage (V)	24/60
