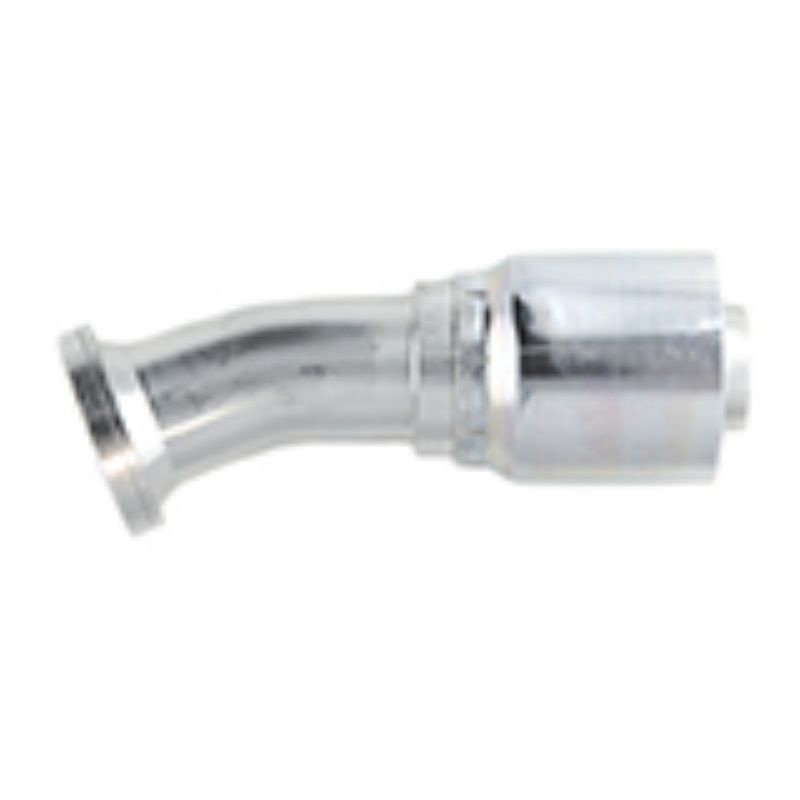

Parker 16B77-24-24 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16B77-24-24

$219.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	SAE Code 62 Flange Head
Hose Inside Diameter	1-1/2 inch	Nut Hex Size	n/a
Shape	Elbow 22.5°	Connection Size	n/a
Materials of Construction	Steel	Back-Up Hex Size	n/a
Division	Hose Products Division	Flange Size	1-1/2 inch
Port Size	1-1/2 inch	Banjo Port Diameter	n/a
Materials of Construction	Steel	Hose I.D. (inch)	1-1/2"
Port Connection	1-1/2"	Shape	Elbow 22-1/2°
Product Style	SAE Code 62 Flange Head
