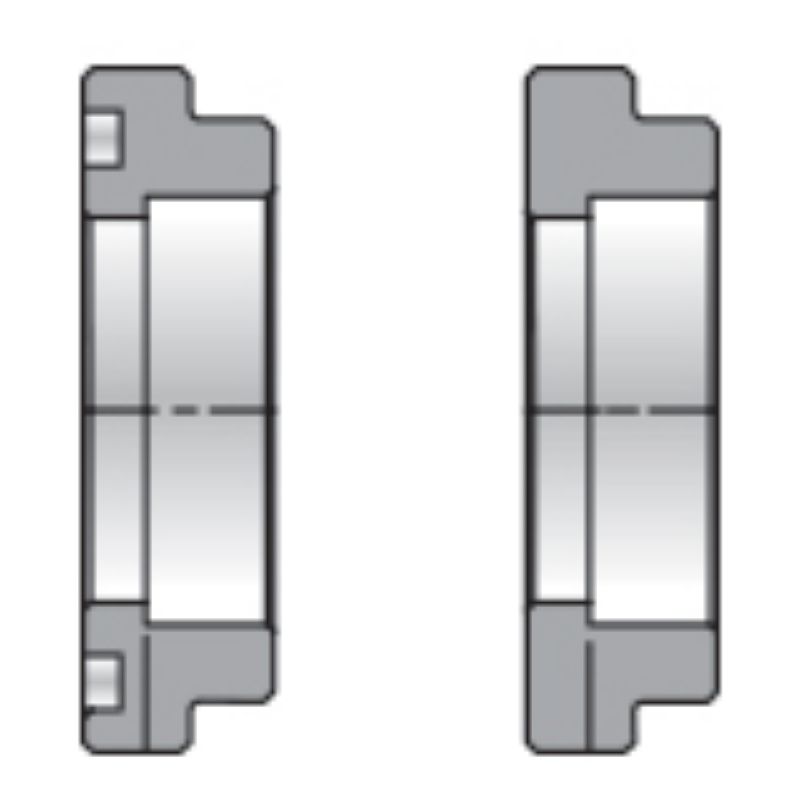

Parker 16B3HQ1SS - 4-Bolt Hydraulic Flanges and Components

Parker's 4-bolt hydraulic flanges and components are proven leak-free connections, especially suited for larger sizes, higher pressures and assembly in tight quarters.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16B3HQ1SS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	4500 psi
O-Ring Material	Nitrile	Includes	n/a
Flange Size	Code 61	Specifications Met	SAE J518
Body Material	Stainless Steel	Flange	Code 61
Flange Size (inch)	1	Face Style	O-Ring Face
Connection Style	Braze Flange Head Connector	Connection 1 Style	Tube Braze Socket
Connection Pipe O.D. (inch)	na	Connection Thread Size (inch)	na
Connection Tube O.D. (inch)	1

Product resources

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)
