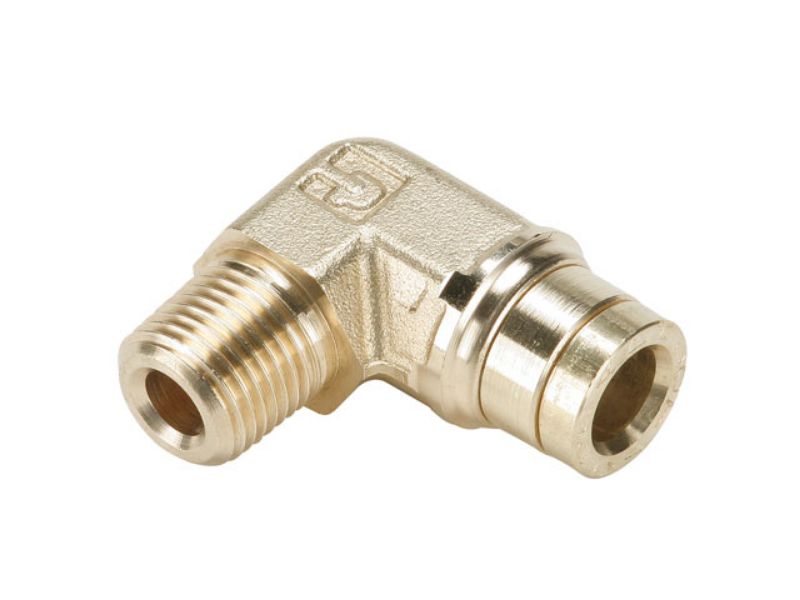

Parker 169PMTNS-4-M22 - Prestomatic 169PMTNS

Male Elbow 90° - Push-to-Connect Transportation Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 169PMTNS-4-M22

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Thread 1	M22x1.5 Metric
Pkg Qty/UOM	10 EA	Outer Diameter 1	1/4 Inch
UOM	EA	Pkg Qty	10
Material	Brass	Material	Brass
Trade Name	Prestomatic	Thread 1 Type	Metric
Outer Diameter 1 Inch/mm	Inch	Configuration Type	Tube to Male
Parker Group	Fluid Connector	Parker Division	Fluid Systems Connector (Brass Products)
Outer Diameter 1	1/4 Inch	Operating Temperature	-40°F to +200°F
Thread 1	M22x1.5 Metric	Series	Prestomatic
Pressure Range	Up to 250 PSI	Configuration Sub-Type	Male Elbow 90°
Inch/Metric	Inch

Product resources

Transportation Fittings (PDF)
