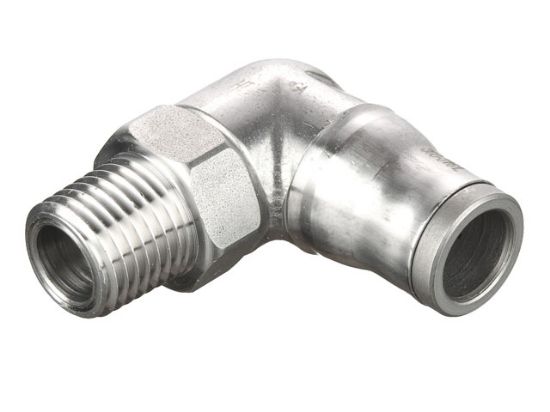

Parker 169PLS-3-2 - Prestolok PLS Series 169PLS - Inch

Inch Male Elbow 90° - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 169PLS-3-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Thread 1	1/8 NPT	UOM	EA
Outer Diameter 1	3/16 Inch	Material - Seal	FKM Fluoroelastomer
Trade Name	Prestolok	Inch/Metric	Inch
Thread 1 Type	NPT	Outer Diameter 1 Inch/mm	Inch
Outer Diameter 1	3/16 Inch	Configuration Type	Tube to Male
Material	Stainless Steel	Pressure Range	7 to 290 psi
Thread 1	1/8 NPT	Parker Division	Fluid Systems Connector (Brass Products)
Parker Group	Fluid Connector	Configuration Sub-Type	Male Elbow 90°
Operating Temperature	-4˚ to +302˚F	Series	Prestolok PLS

Product resources

Prestolok Fittings (PDF)
General Technical (PDF)
