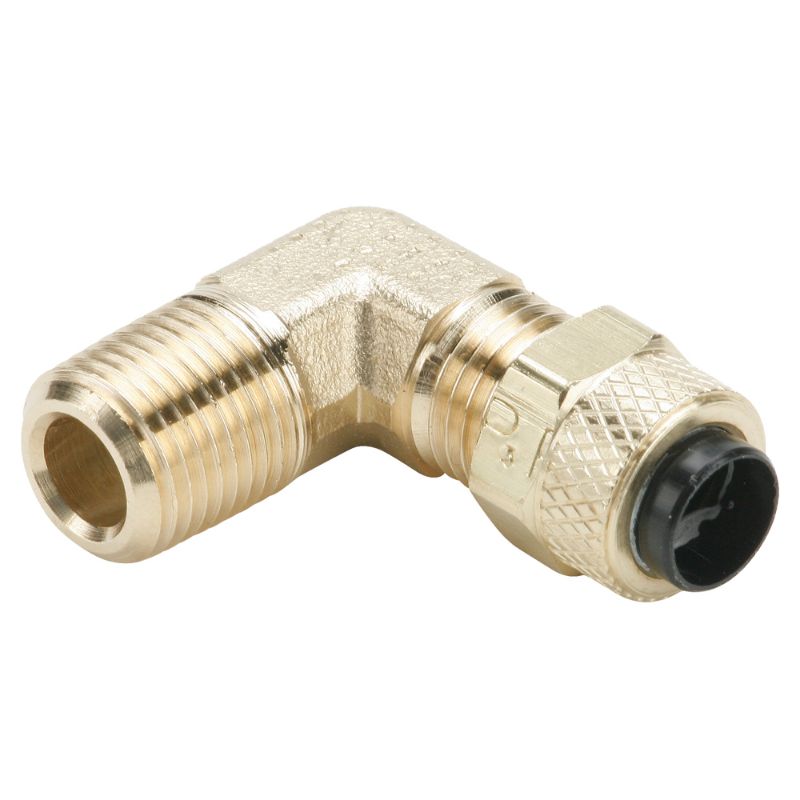

Parker 169P-4-2 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Name: Parker 169P-4-2 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.
SKU: 169P-4-2
Price: 5.66 USD
Availability: InStock

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:

25 In Stock

Richmond, VA	19
Knoxville, TN	6
Richmond, VA	4
Johnson City, TN	4
Knoxville, TN	4
Jacksonville, FL	3

Partner Available:

1504 In Stock

Brand Parker

Part No. 169P-4-2

$5.66

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Minimum Operating Temperature	0 °F
Maximum Operating Temperature	150 °F	Maximum Operating Pressure	10 bar
Application	Machine Tools	Nut Material	Brass
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	Sleeve Material	Brass, Acetal Copolymer
Dimensional Weight	0.027594424460431654 lb	Shape	90° Elbow
Connection 2 Thread Size (inch)	1/8	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Style	Tube to Pipe	Connection 2 Style	Male Pipe
