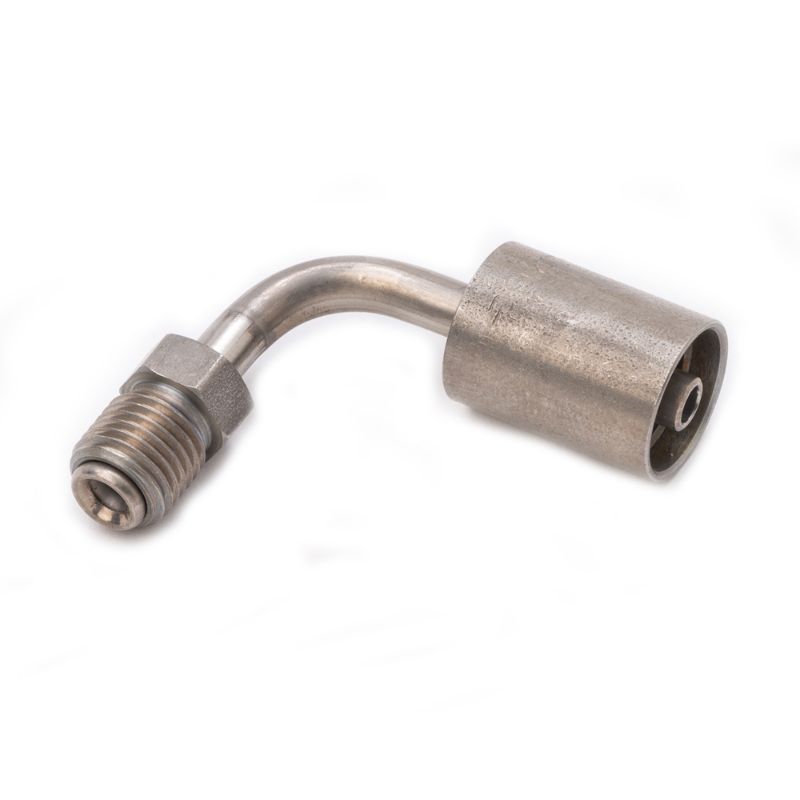

Parker 16992-3-3C - Permanent Fittings for Marine Power Tilt Hose – 92 Series

Parker's 92 Series fittings are assembled onto PTH Marine Power Tilt Hose. The series is available in stainless steel construction only.

AFP Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. 16992-3-3C

$44.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Technology	Fluid & Gas Handling
Fitting Type	Crimp	Connection 1 Size	1/8 inch Hose I.D.
Body Material	Stainless Steel	Shape	Elbow 90°
Division	Parflex Division	Product Style	Male Inverted SAE 45° - Swivel - 90° Elbow
Length	37 mm	Product Type	Fitting
Hex Size 1	3/8 inch	Application	Marine
Connection Size	3/8"-24 inch Thread	Connection 1 Type	SAE
Brand	Parker	Product Series	92
Industry	Marine	Dimensional Weight	0.0243 lb
Materials of Construction	Stainless Steel	For Fluid Type	Water (Salt Water)
Division	Parflex Division	Hose I.D. (inch)	0.125"
Product Style	Male Inverted SAE 45° - Swivel - 90° Elbow
