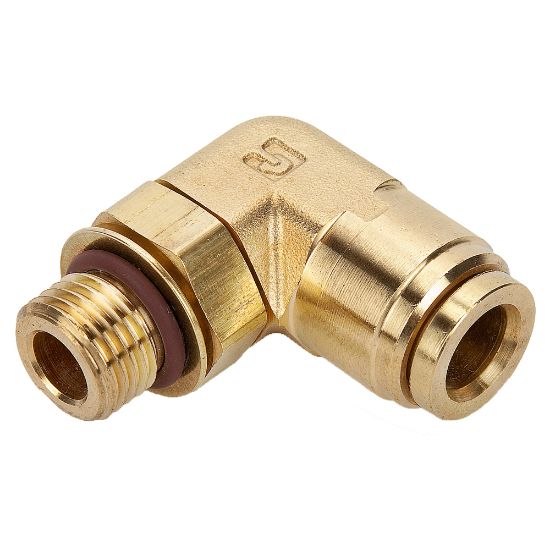

Parker 1695PMH-6-4 - PMH Low pressure hydraulic fittings

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1695PMH-6-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Minimum Operating Temperature	-40	O-Ring Material	Nitrile
Maximum Operating Pressure	435	Application	Low pressure hydraulics
Tube Material	XDT Tubing	Connection Type	SAE Straight Thread
Maximum Operating Temperature	200	Connection 1 Size	Push-to-connect
Connection 2 Thread Size	1/4"	Connection 1 Tube Outside Diameter	3/8" (O.D.)
Shape	Elbow - Male	Configuration	Tube to Straight Thread
Connection 2 Type	SAE Straight
