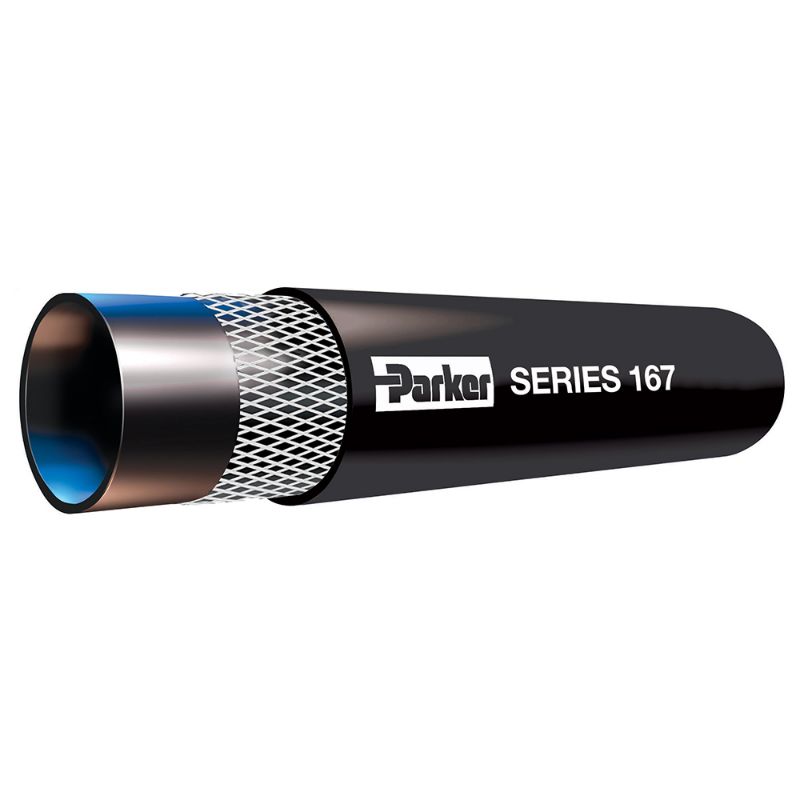

Parker 167-06008 - PVC Fire Extinguisher Booster Hose, Series 167

PVC Fire Extinguisher Booster Hose is designed for use in portable fire extinguisher units to 150°F and 250 psi, Series 167

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 167-06008

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Inside Diameter	3/8
Maximum Operating Temperature	150	Cover Color	Black
Minimum Operating Temperature	-65	Application	PVC Hose
Cover Structure	Smooth	Minimum Bend Radius	n/a
Hose Reinforcement Material	2 Plies of Textile	Hose Inner Tube Material	Black
Media	Chemicals (Fire Retardant)	Weight	13.4
Specifications Met	UL 92	Maximum Operating Pressure	250 psi at 68°F
Cover Material	Blended PVC	Outside Diameter	2
Hose I.D. (inch)	3/8	Maximum Working Pressure (psi)	250 at 68F

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
