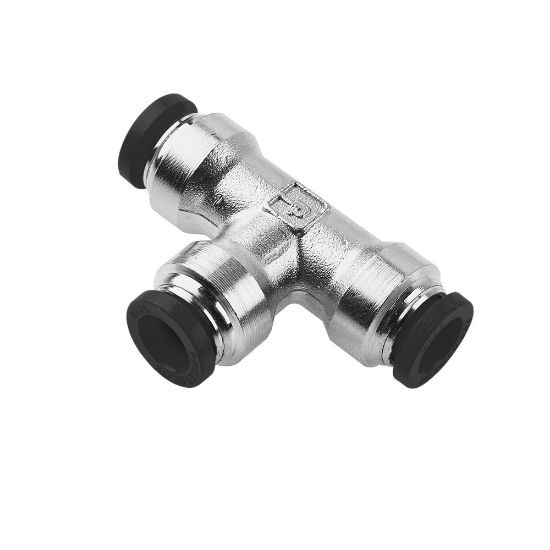

Parker 164PLP-5 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Name: Parker 164PLP-5 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal
SKU: 164PLP-5
Price: 15.87 USD
Availability: InStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

AFP Availability:

57 In Stock

North Chesterfield, VA	18
West Knoxville, TN	10
Grovetown, GA	8
Sumter, SC	6
East Knoxville, TN	6
Ashland, VA	5 (Pickup only)
Johnson City, TN	3 (Pickup only)
Norfolk, VA	1

Partner Available:

420 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 164PLP-5

$15.87/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.2179 lb
For Fluid Type	Inert Gases	Vacuum Pressure Rating	28 Inch-Hg
Maximum Operating Temperature	93.3 °C	Technology	Pneumatics
Division	Fluid System Connectors Division	Region of Origin	United States
Hex Size	n/a	Body Material	Brass, Nickel-plated
Division	Fluid System Connectors Division	Minimum Operating Temperature	-17.7 °C
Application	Automotive	Specifications Met	UL 94 V-0
Tube Material	Nylon	Gripping Ring Material	Stainless Steel
Maximum Operating Pressure	20.6 bar	Industry	Semiconductor
Seal Material	Nitrile	Brand	Parker
Materials of Construction	PVDF (Button)	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Connection 2 Size	5/16"
Shape	Union Tee	Connection 1 Size	5/16"
Connection 2 Type	Push-to-Connect	Connection 3 Size	5/16"
Connection 3 Type	Push-to-Connect
