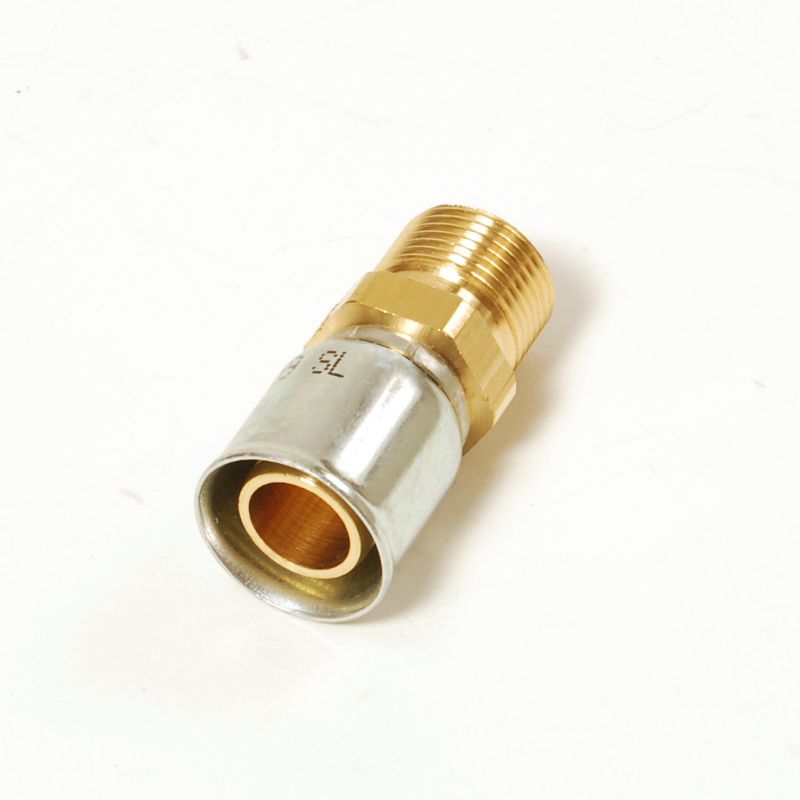

Parker 16191N-8-8 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 16191N-8-8 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 16191N-8-8
Price: 38.22 USD
Availability: LimitedAvailability

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Availability:

7 In Stock

Ashland, VA	2
Richmond, VA	2
Johnson City, TN	2
Knoxville, TN	1

Partner Available:

64 In Stock

Brand Parker

Part No. 16191N-8-8

$38.22

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Division	Parflex Division
Technology	Fluid & Gas Handling	Connection 2 Type	Male
Application	Instrumentation	Specifications Met	N/A
Coating	Chromium 6 Free-plated	Division	Parflex Division
Hex Size	n/a	Product Type	Hose Fittings
Configuration	Hose to Port	Connection 1 Size	-8 (Size)
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Maximum Operating Pressure	3000 psi (Dependent on hose)	Product Series	91N
Industry	Food & Beverage	Body Material	Brass (Nipple)
Fitting Length	41 mm	For Fluid Type	Chemicals
Connection Length	15/16 inch Cut-off allowance (see drawing legend B)	Dimensional Weight	0.0522 lb
Hex Size 1	3/4 inch (see drawing legend H)	Connection 2 Size	11/16"-20 inch Thread
Hose I.D. (inch)	0.406"	Length (inch)	1.65"
Product Style	Compression Air Brake	Connection 2 Size	11/16"-20
